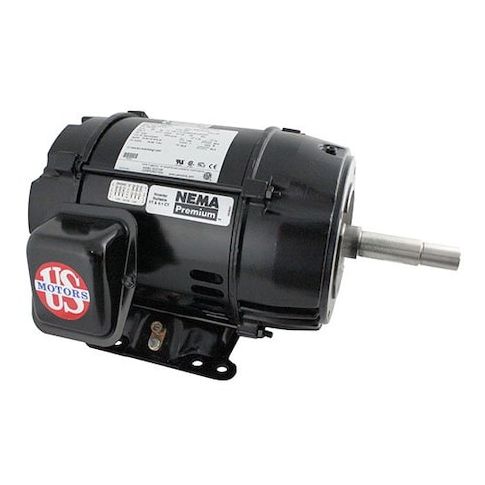

3-Phase Pump Motor, 7 1/2 HP, 184JMZ Frame, 208-230/460V AC Voltage, 3, 490 Nameplate RPM MPN:EEQK750
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7729571
3-Phase Pump Motor, 7 1/2 HP, 184JMZ Frame, 208-230/460V AC Voltage, 3, 490 Nameplate RPM
This 7 1/2 HP 3-phase pump motor is designed for continuous use in a variety of applications, including industrial and commercial settings. With a NEMA Premium Efficient motor design, it offers improved energy efficiency and reduced operating costs. The motor's inverter-rated design allows for seamless integration with variable frequency drives, making it ideal for applications that require adjustable speed control. Its compact 184JMZ frame size makes it suitable for use in tight spaces, and the motor's high efficiency and reliability make it a reliable choice for demanding applications such as pumping water, chemicals, and other fluids.
Top product features:
- 3-Phase operation for efficient power distribution
- NEMA Premium Efficient motor design for reduced energy consumption
- Inverter Rated for safe and reliable operation with variable frequency drives
Top product applications:
- Industrial water treatment plants
- Pump stations and wastewater treatment facilities
- Oil and gas refineries and pipelines
Pump Motor, Body Dia. 8.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JMZ, Hz 60 Hz, Full Load Amps 20.4-18.2/9.1, Height 8 1/2 in, HP 7 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 20:1 (VT), 4:1 (CT), Length Less Shaft 11 7/8 in, Manufacturers Warranty Length 24 mo, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 24.0-21.0/10.5, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 14.70
- Package Weight: 60.00
Product info last updated on March 1, 2026 8:10am UTC
Category: Motors
