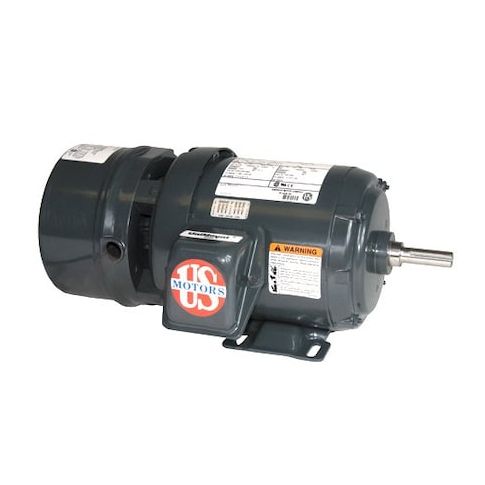

3-Phase Brake Motor, 3 HP, 182 Frame, 208-230/460V AC Voltage, 1, 765 Nameplate RPM MPN:BMU3P2D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7728013
3-Phase Brake Motor, 3 HP, 182 Frame, 208-230/460V AC Voltage, 1, 765 Nameplate RPM
This 3-Phase Brake Motor is a high-performance solution for a variety of applications, including manufacturing, material handling, and more. With a robust 3 HP rating and 1,765 Nameplate RPM, it provides reliable power and precise control in demanding environments. Its totally enclosed fan-cooled design ensures efficient operation and long motor life. Suitable for use at 208-230/460V AC, this motor is ideal for applications requiring continuous duty cycles, including conveyor systems, hoists, and cranes. Its compact 182 frame design makes it easy to integrate into existing systems, providing a reliable and efficient solution for a wide range of industrial applications.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Totally Enclosed Fan Cooled for Reliable Operation in Harsh Environments
- Continuous Duty Cycle for Uninterrupted Operation
Top product applications:
- Machine Tool Applications
- Conveyor Systems
- Industrial Automation
Brake Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 8.4-7.8/3.9 A Full Load Amps, 182 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 170.00
Product info last updated on March 1, 2026 5:02am UTC
Category: Motors
