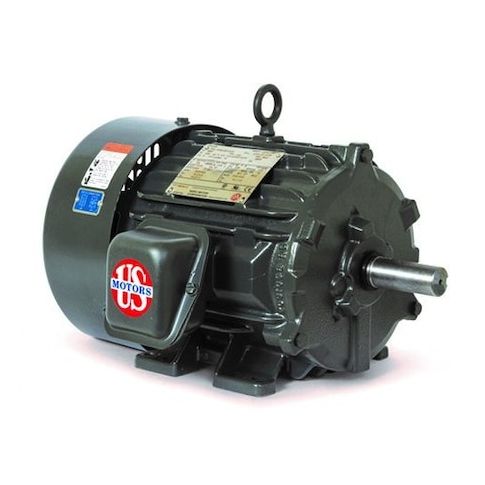

Three-Phase Motor, 20 HP, 286T Frame, 200V, 208V, 230V, 400V, 460V Voltage, 1, 180 Nameplate RPM MPN:HD20P3E
Three-Phase Motor, 20 HP, 286T Frame, 200V, 208V, 230V, 400V, 460V Voltage, 1, 180 Nameplate RPM
This 20 HP three-phase motor from US Motors is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1,180 and a nominal efficiency of 91.7%, this motor is perfect for use in industrial settings such as manufacturing facilities, power plants, and water treatment plants. Its totally enclosed fan cooled (TEFC) design and rigid base mounting type provide optimal cooling and stability, while its CSA certification ensures compliance with industry standards. Suitable for a wide range of voltages, including 200V, 208V, 230V, 400V, and 460V, this motor is a versatile solution for various applications.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Rigid Base Motor Mounting Type
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial Pump
- Manufacturing Plant
- Water Treatment Facility
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,180, Frame 286T, Voltage 200V, 208V, 230V, 400V, 460V, 60/50 Hz Hz, Three Phase, Full Load Amps 49.0/24.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,101-1,200, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 350.00
Product info last updated on March 2, 2026 8:58am UTC
Category: Motors
