Three-Phase Motor, 10 HP, 215TC Frame, 190V, 208-230/460V, 380V Voltage, 1, 760 Nameplate RPM MPN:U10P2DC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7726972

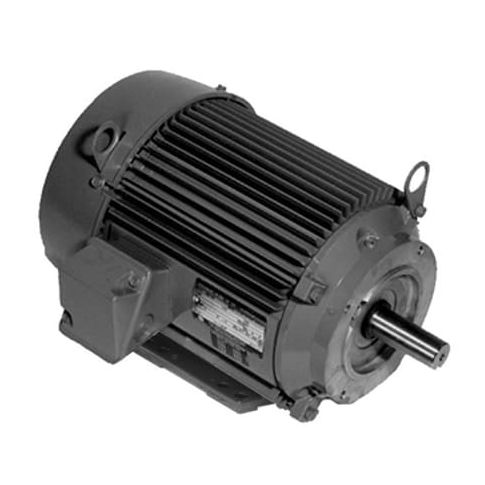

Three-Phase Motor, 10 HP, 215TC Frame, 190V, 208-230/460V, 380V Voltage, 1, 760 Nameplate RPM
This 10 HP three-phase motor from US Motors is a reliable and efficient solution for a wide range of industrial applications. With a nameplate RPM of 1,760 and a frame size of 215TC, it is designed for high-performance operation in demanding environments. The motor's totally enclosed fan cooled enclosure provides excellent protection against dust and moisture, making it ideal for use in harsh industrial settings. Its high efficiency of 91.7% and CSA certification ensure compliance with safety standards. Suitable for applications such as pumps, fans, and conveyor systems, this motor offers a cost-effective and durable solution for industrial power needs.
Top product features:
- Three-Phase Motor design for high efficiency
- Totally Enclosed Fan Cooled Motor Enclosure Design for reliability and durability
- Rigid Base Motor Mounting Type for stability and secure installation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment equipment
- Manufacturing machinery
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1,760, Frame 215TC, Voltage 190V, 208-230/460V, 380V, 60/50 Hz Hz, Three Phase, Full Load Amps 26.5-23.9/12.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,701-1,800, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 133.00
Product info last updated on March 1, 2026 5:15am UTC
Category: Motors
