Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame MPN:D1CPA1PH9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7598885

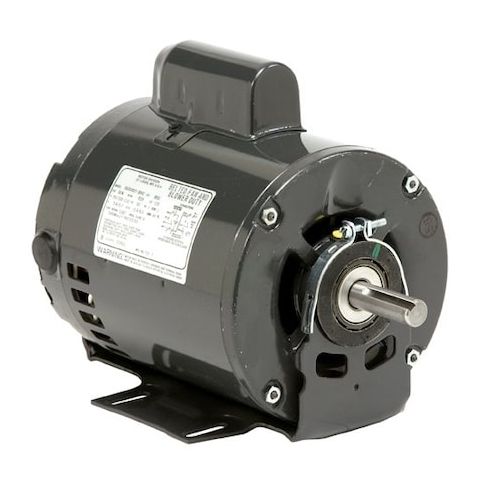

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame
This 1 hp capacitor-start/run general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 56H frame make it a versatile and reliable option for various settings. With a nameplate RPM of 3,450 and a continuous duty cycle, this motor is suitable for applications requiring consistent power output. Its open drip-proof enclosure and cradle base mounting type make it easy to install and maintain. Perfect for use in factories, warehouses, and other industrial settings, this motor provides a reliable and efficient solution for your power needs.
Top product features:
- Capacitor-start/run design allows for efficient starting and running of the motor
- Single-phase motor design is suitable for general purpose applications
- Open drip proof enclosure design provides protection against dust and water
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.3/4.3 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 28.00
Product info last updated on February 25, 2026 8:08am UTC
Category: Motors
