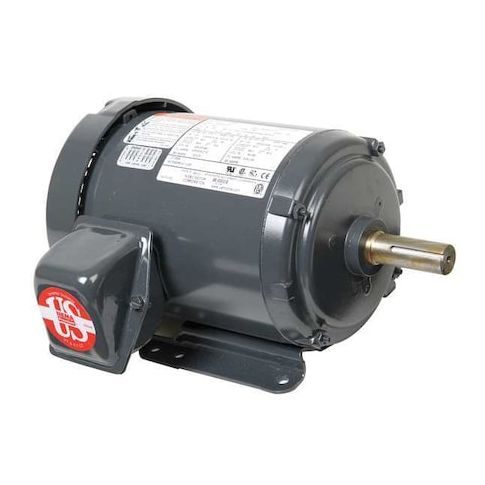

Three-Phase General Purpose Motor, 1 1/2 HP, 182T Frame, 208-230/460V AC Voltage, 1200 Nameplate RPM MPN:U32P3D
Three-Phase General Purpose Motor, 1 1/2 HP, 182T Frame, 208-230/460V AC Voltage, 1200 Nameplate RPM
This 1.5 HP three-phase general purpose motor from US Motors is designed for a variety of applications requiring high efficiency and reliability. Suitable for use in industrial settings, it features a totally enclosed fan cooled motor enclosure, rigid base mounting, and ball bearings for smooth operation. With a nameplate RPM of 1200 and a maximum ambient temperature of 40 degrees C, it can handle demanding tasks in a range of environments. Its high efficiency and continuous duty rating make it an ideal choice for applications such as pumps, fans, and conveyor systems, where reliability and performance are paramount.
Top product features:
- Three-phase AC voltage compatibility for 208-230/460V operation
- Totally enclosed fan cooled motor enclosure for efficient heat dissipation
- Ball bearings for smooth and durable motor operation
Top product applications:
- Industrial Pumping Systems
- Conveyor Belt Drives
- Centrifugal Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1200, Frame 182T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.8-4.7/2.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.90
- Package Width: 14.40
- Package Height: 14.70
- Package Weight: 59.20
Product info last updated on February 20, 2026 8:47pm UTC
Category: Motors
