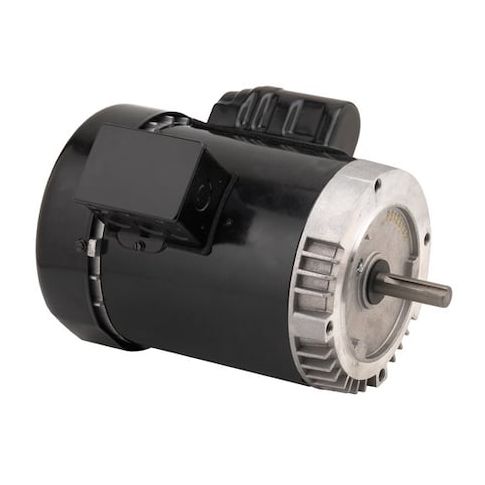

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:T34CA2JCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4405136
Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame
This 3/4 hp Capacitor-Start General Purpose Motor from US Motors is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, it offers a high level of performance and durability. With a single-phase design and 1,725 RPM nameplate speed, it is ideal for industrial and commercial settings. The motor's totally enclosed fan-cooled design ensures optimal heat dissipation, while its 1.15 service factor and continuous duty cycle provide long-lasting reliability. Perfect for applications such as pumps, fans, and conveyor systems, this motor is a cost-effective and efficient choice for any industry.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and protected environment for the motor.
- Single Phase, Motor Design Capacitor-Start allows the motor to operate efficiently and effectively.
- Keyed Motor Shaft design ensures secure and precise motor mounting.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.4/5.7-5.7 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 32.00
Product info last updated on April 15, 2026 2:50am UTC
Category: Motors
