Split-Phase General Purpose Motor, 1/2 hp HP, 115V AC Voltage, 48Z Frame, 1, 725 RPM Nameplate RPM MPN:D12B2N49
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4404043

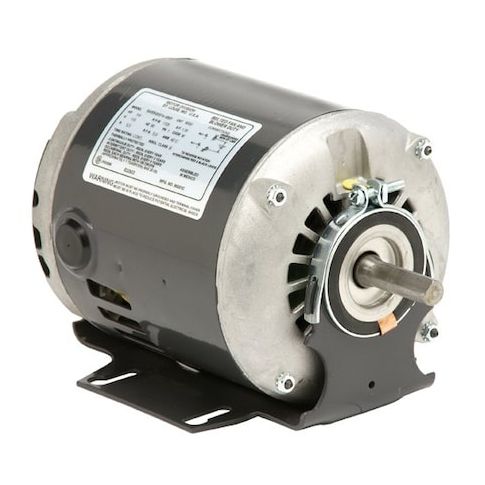

Split-Phase General Purpose Motor, 1/2 hp HP, 115V AC Voltage, 48Z Frame, 1, 725 RPM Nameplate RPM
This US Motors 1/2 hp Split-Phase General Purpose Motor is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1,725, it provides efficient operation in 115V AC environments. The motor's open drip proof enclosure and cradle base mounting type make it easy to integrate into existing systems. Its continuous duty cycle and 60 Hz operation ensure reliable performance in demanding applications. Suitable for use in environments up to 40°C, this motor is an ideal choice for industries such as manufacturing, packaging, and material handling. Its compact size and lightweight design also make it perfect for space-constrained installations.
Top product features:
- Split-phase motor design for efficient operation
- Continuous duty cycle for reliable performance
- Open drip-proof enclosure for protection against dust and debris
Top product applications:
- Pump for small residential or commercial applications
- Blower motor for HVAC systems
- Conveyor motor for light industrial use
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 8.8 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 9.13
- Package Height: 9.63
- Package Weight: 18.00
Product info last updated on February 22, 2026 8:44am UTC
Category: Motors
