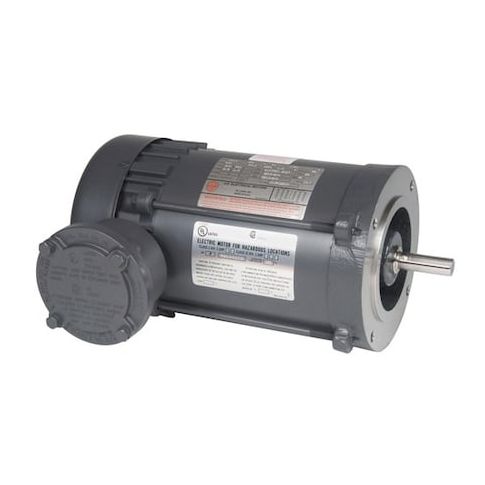

3-Phase Hazardous Location Motor, 5 HP, 184 Frame, 230/460V AC Voltage, 1, 750 Nameplate RPM MPN:X5P2BCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3642284
3-Phase Hazardous Location Motor, 5 HP, 184 Frame, 230/460V AC Voltage, 1, 750 Nameplate RPM
This 3-Phase Hazardous Location Motor from US Motors is designed for use in explosive or flammable environments, meeting Class I, Class II, and Temp. Code T3B requirements. Ideal for applications such as oil and gas, chemical processing, and pharmaceutical manufacturing, this motor operates at 1,750 RPM and 230/460V AC voltage, providing reliable performance in harsh conditions. With a totally enclosed fan-cooled design and continuous duty cycle, this motor offers increased efficiency and reduced maintenance needs. Its rigid base mounting and NEMA Design B ensure secure installation and operation, making it a reliable choice for demanding industrial applications.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Totally Enclosed Fan Cooled Enclosure for Dust and Moisture Protection
- Continuous Duty Cycle for Reliable Operation in Demanding Environments
Top product applications:
- Oil and Gas Industry Pumps
- Marine Vessels and Shipyards
- Chemical Processing Plants
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.5/6.2 A, 184 Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.88
- Package Width: 14.50
- Package Height: 28.50
- Package Weight: 118.00
Product info last updated on January 20, 2026 12:49am UTC
Category: Motors
