Air Compressor Motor, 1/3 hp, 1140 RPM MPN:D13CP3PH9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1930438

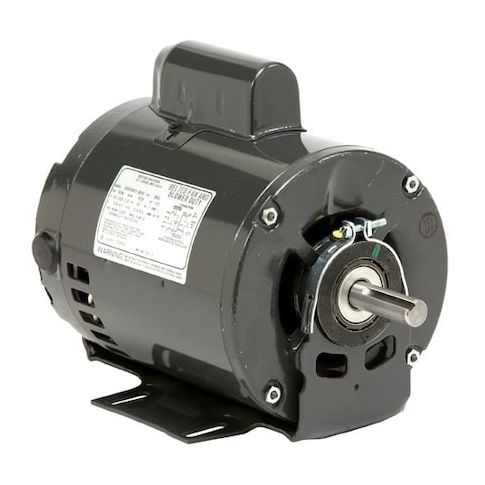

Air Compressor Motor, 1/3 hp, 1140 RPM
This 1/3 hp air compressor motor from US Motors is designed for single-phase applications and features a capacitor-start motor design. With a nameplate RPM of 1,140 and a wide voltage range of 115/230V AC, it's suitable for various industrial and commercial uses. Its compact 56H frame and open drip-proof enclosure make it easy to integrate into existing systems. Ideal for applications such as pneumatic tools, air-powered equipment, and small-scale industrial processes, this motor offers reliable performance and energy efficiency. Its continuous duty cycle and CW/CCW rotation ensure consistent operation and versatility.
Top product features:
- Single Phase Operation
- Capacitor-Start Motor Design
- Continuous Duty Cycle
Top product applications:
- Air Compressor Motor suitable for small to medium-sized air compressors in industrial settings.
- Air Compressor Motor can be used in woodworking and metalworking applications, such as powering air tools and equipment.
- Air Compressor Motor is also suitable for use in garage and shop settings, powering air tools and equipment for automotive and DIY projects.
Air Compressor Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.4/2.3 A, 56H Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.20
- Package Width: 8.40
- Package Height: 10.50
- Package Weight: 26.65
Product info last updated on February 8, 2026 6:15pm UTC
Category: Motors
