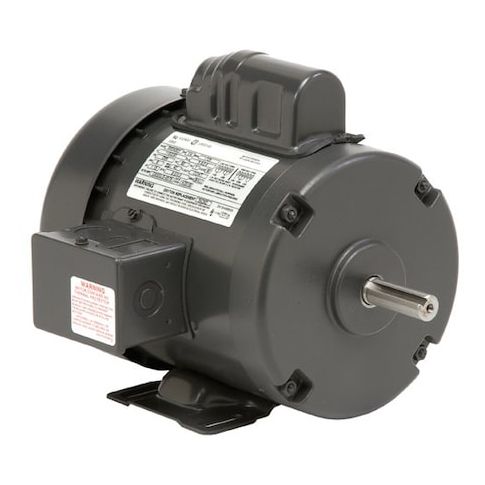

Motor, 5HP, 3505RPM, 230V, 60HZ, 184T MPN:T5C1K18
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0921442
Motor, 5HP, 3505RPM, 230V, 60HZ, 184T
This 5HP, 230V, single-phase motor from US Motors is designed for general purpose applications. With a high efficiency rating and a robust design, it can handle demanding tasks with ease. The motor's 3,505 RPM and 19.6A full-load current make it suitable for a variety of applications, including industrial equipment, pumps, and conveyor systems. Its totally enclosed fan-cooled design ensures reliable operation in harsh environments, while its rigid base mounting provides stability and secure installation. Ideal for continuous duty cycles, this motor is a reliable choice for applications that require high torque and long lifespan.
Top product features:
- Totally Enclosed Fan Cooled design for reliable operation in harsh environments
- Keyed shaft for secure mounting and reduced vibration
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump applications for chemical plants and water treatment facilities
- Conveyor belt drives in manufacturing facilities and warehouses
- Fans and blowers in HVAC systems and industrial ventilation systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 5 hp HP, Nameplate RPM 3,505 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 19.6 A, 184T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 91.00
Product info last updated on February 1, 2026 9:45am UTC
Category: Motors
