Motor, 1/5HP, 1075RPM, 208-230V, 60HZ, FLA2.0 MPN:1648
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0917190
Motor, 1/5HP, 1075RPM, 208-230V, 60HZ, FLA2.0

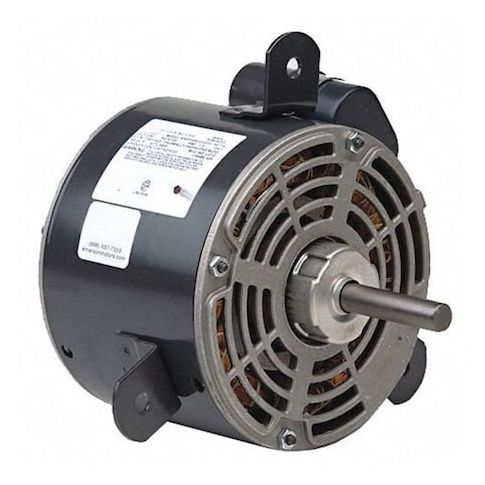

This 1/5HP condenser fan motor from US Motors is designed for single-phase applications, offering reliable and efficient operation. With a permanent split capacitor design and totally enclosed air-over enclosure, it provides protection from dust and moisture. The motor's auto thermal protection and Class A insulation ensure safe and reliable operation in temperatures up to 40°C. Ideal for use in HVAC systems, the motor's 1,075 RPM and 2.0A full load amps make it suitable for a variety of applications, including residential and light commercial air conditioning, ventilation, and heating systems. Its compact design and horizontal mounting make it easy to install.
Top product features:
- 1/5HP motor provides sufficient power for light to moderate applications
- Permanent Split Capacitor design allows for efficient and reliable operation
- Totally Enclosed Air-Over motor enclosure protects internal components from dust and moisture
Top product applications:
- HVAC Systems
- Industrial Conveyors
- Air Handling Units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Motor Mounting Position Horizontal, Shaft Length 2 1/2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 8.20
- Package Height: 7.00
- Package Weight: 11.70
Product info last updated on February 1, 2026 2:34am UTC
Category: Motors
