Farm Duty Motor, Capacitor-Start, 5 HP, 230V AC, 1, 740 Nameplate RPM, 184T Frame MPN:FD5CM2K18
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408290

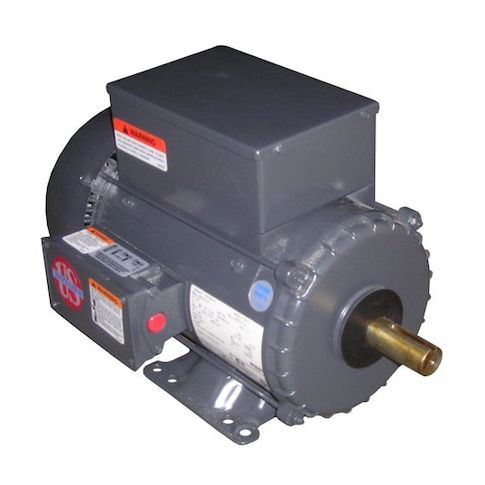

Farm Duty Motor, Capacitor-Start, 5 HP, 230V AC, 1, 740 Nameplate RPM, 184T Frame
This US Motors Farm Duty Motor is a reliable and efficient solution for a variety of agricultural and industrial applications. Its capacitor-start design and 5 HP rating make it suitable for powering pumps, irrigation systems, and other equipment. The motor's 1,740 RPM and 22.0 A full-load amps ensure consistent performance, while its totally enclosed fan-cooled design protects against dust and moisture. With a continuous duty cycle and manual thermal protection, this motor can operate in challenging environments. Its rigid base and steel frame provide a sturdy foundation, making it an ideal choice for farms, ranches, and industrial settings.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Motor Shaft Rotation is CW/CCW, allowing for flexibility in installation and use.
- Capacitor-Start motor design provides a high starting torque and efficient operation.
Top product applications:
- Pumping water for irrigation systems
- Running grain dryers
- Powering farm equipment such as threshers and balers
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 5 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 22.0 A, 184T Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Steel, Shaft Dia. 1 1/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 125.00
Product info last updated on February 28, 2026 11:07am UTC
Category: Motors
