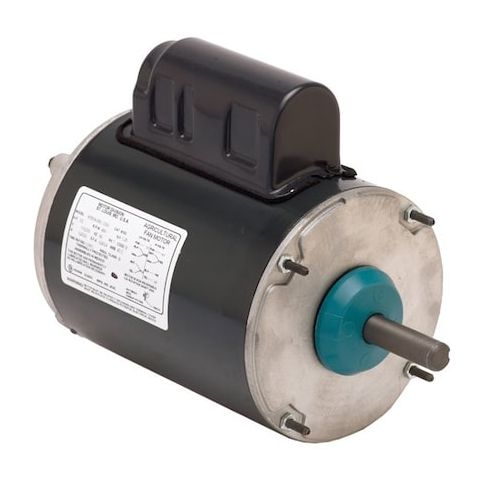

Farm Duty Motor, Capacitor-Start/Run, 3/4 HP, 115/230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:FD34BA2P
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408150
Farm Duty Motor, Capacitor-Start/Run, 3/4 HP, 115/230V AC, 1, 725 Nameplate RPM, 56 Frame
This 3/4 HP Farm Duty Motor is designed for rugged applications and harsh environments, featuring a capacitor-start/run design and a totally enclosed air-over enclosure. With a high service factor of 1.25 and automatic thermal protection, it provides reliable operation and long lifespan. Suitable for continuous duty cycles, this motor is ideal for use in farms, ranches, and other agricultural settings, as well as in commercial and industrial applications where durability and efficiency are essential. Its versatility and robust design make it an excellent choice for a wide range of uses, including irrigation systems, pumps, and other heavy-duty equipment.
Top product features:
- Capacitor-start/run design for efficient starting and running
- Totally enclosed air-over design for protection from dust and moisture
- Continuous duty cycle capability for prolonged operation without overheating
Top product applications:
- Pump and well water systems
- Agricultural irrigation systems
- Industrial process control systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.8/5.4 A, 56Y Frame, Usable @ 208V Not Usable at 208V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 32.00
Product info last updated on February 28, 2026 5:02pm UTC
Category: Motors
