Farm Duty Motor, Capacitor-Start, 1 1/2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56H Frame MPN:FD32CM2PH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408035

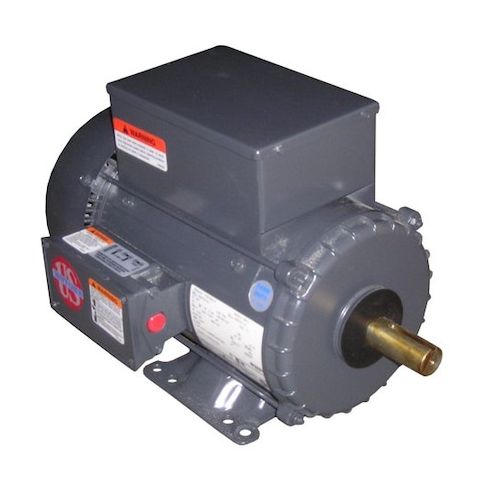

Farm Duty Motor, Capacitor-Start, 1 1/2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56H Frame
This Farm Duty Motor from US Motors is a reliable and efficient solution for agricultural and industrial applications. With a 1 1/2 HP rating and 1,725 Nameplate RPM, it provides continuous operation in demanding environments. The capacitor-start design ensures smooth starting and reduced wear, while the totally enclosed fan-cooled enclosure protects against dust and moisture. Suitable for use in 115/230V AC systems, this motor is ideal for applications such as irrigation systems, grain handling equipment, and other farm-related machinery. Its robust construction and manual thermal protection make it a reliable choice for heavy-duty use.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and protection from the elements
- Manual thermal protection for user control and safety
- 1.15 Service Factor for increased motor efficiency and reliability
Top product applications:
- Pumps and irrigation systems
- Agricultural equipment and machinery
- Well drilling and pumping systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 16.2/8.1 A, 56H Frame, Usable @ 208V Not Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 47.00
Product info last updated on March 11, 2026 4:34am UTC
Category: Motors
