Motor, 3PH, 3/4HP, 1800, 208-230/460V, WD 56C MPN:WD34S2ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0404230
Motor, 3PH, 3/4HP, 1800, 208-230/460V, WD 56C

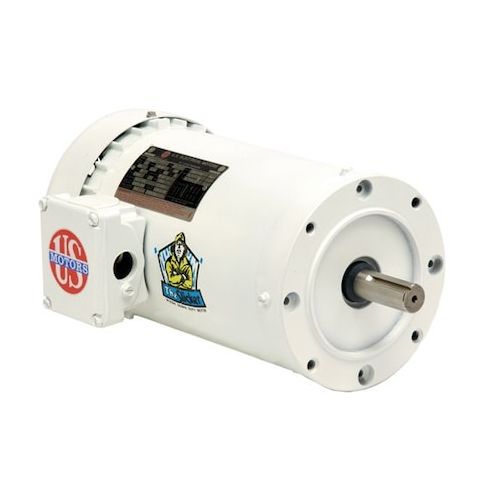

This 3-phase, 3/4 HP washdown motor from US Motors is designed for demanding applications in harsh environments. With a nameplate RPM of 1800, it provides reliable and efficient operation in a variety of settings, including food processing, pharmaceutical, and chemical manufacturing. Its totally enclosed non-ventilated (TECN) design and Class F insulation ensure long motor life and protection from dust and moisture. This motor is suitable for continuous duty cycles and can operate at 208-230/460V AC, making it a versatile solution for applications requiring high reliability and durability.
Top product features:
- Three Phase Design
- Totally Enclosed Non-Ventilated Enclosure
- 1800 RPM Nameplate Speed
Top product applications:
- Industrial laundry equipment
- Pumps and water treatment systems
- Food processing machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.6-2.4/1.2 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 35.00
Product info last updated on March 1, 2026 10:14am UTC
Category: Motors
