Motor, 3PH, 3/4HP, 1800, 208-230/460V, EFF 80 MPN:WDP34S2ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0404133

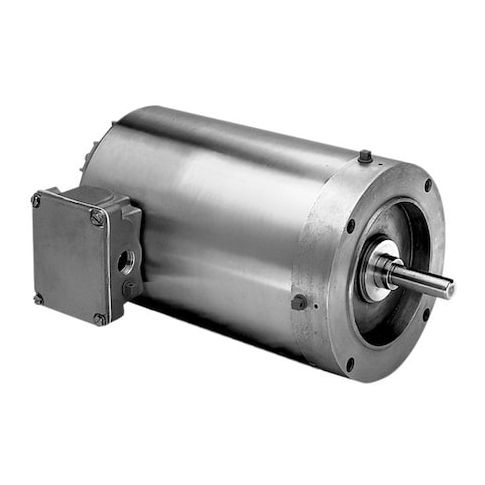

Motor, 3PH, 3/4HP, 1800, 208-230/460V, EFF 80
This 3-phase, 3/4 horsepower motor from US Motors is designed for use in washdown applications, providing a reliable and efficient solution for demanding environments. With a high efficiency rating of 80%, this motor reduces energy consumption and heat generation, extending its lifespan. Its totally enclosed non-ventilated design protects against dust, water, and other contaminants, making it ideal for use in food processing, pharmaceutical, and other industries where cleanliness is crucial. Its continuous duty cycle and NEMA Design B rating ensure smooth operation and long-term reliability.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design provides protection from dust and water
- Three-Phase motor design allows for efficient power transfer and reduced energy consumption
- 1.8k RPM motor speed enables high-torque applications and increased productivity
Top product applications:
- Food Processing Machinery
- Pumps and Compressors
- Packaging Machines
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.8-2.7/1.3 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 35.00
Product info last updated on March 3, 2026 10:56pm UTC
Category: Motors
