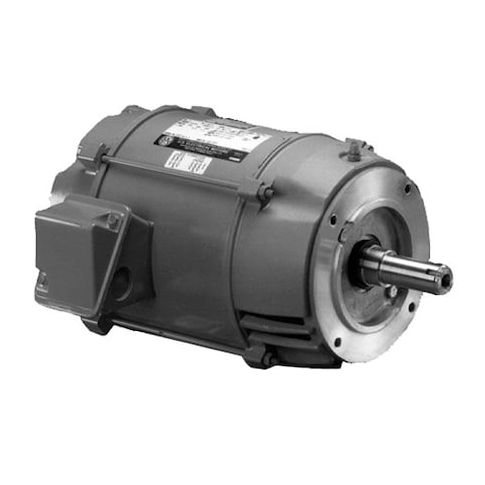

Three-Phase Motor, 2 HP, 56C Frame, 208V, 230V, 460V Voltage, 3, 450 Nameplate RPM MPN:D2P1ACR
Three-Phase Motor, 2 HP, 56C Frame, 208V, 230V, 460V Voltage, 3, 450 Nameplate RPM
This 2 HP three-phase motor from US Motors is designed for heavy-duty applications in various industries. With a 56C frame and a high service factor of 1.15, it can withstand demanding conditions. The motor's open drip proof enclosure design and steel frame ensure durability and protection from environmental factors. It operates at a maximum ambient temperature of 40°C and has a high efficiency of 85.5%. Suitable for use in manufacturing, processing, and other industrial settings, this motor is a reliable choice for applications requiring high power and performance.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy losses.
- Open drip-proof motor enclosure design provides a level of protection against solid particles and liquids.
- CCW motor shaft rotation enables the motor to be easily integrated with existing equipment and machinery.
Top product applications:
- Industrial Fans
- Pumps
- Compressors
Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3,450, Frame 56C, Voltage 208V, 230V, 460V, 60 Hz Hz, Three Phase, Full Load Amps 6.0-5.4/2.7 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCWSE Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 3,001-3,600, CE, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 32.00
Product info last updated on February 10, 2026 7:18pm UTC
Category: Motors
