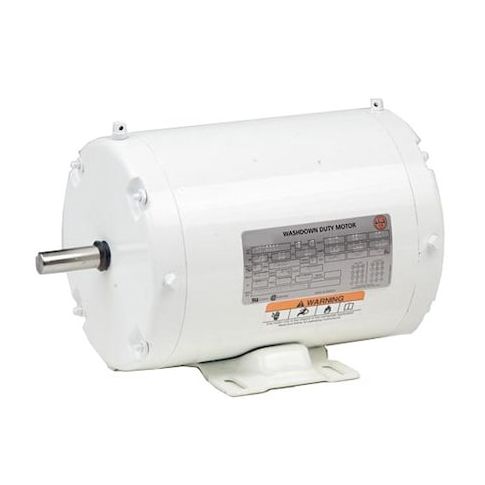

Motor, 3PH, 1HP, 1200, 208-230/460V, Footed MPN:WD1P3A
Motor, 3PH, 1HP, 1200, 208-230/460V, Footed
This 1HP, 1200RPM three-phase motor is designed for heavy-duty applications in washdown environments, featuring a totally enclosed fan-cooled design for optimal performance and protection in harsh conditions. Its compact 145T frame and continuous duty cycle make it suitable for a wide range of uses, including industrial equipment, pumps, and conveyor systems. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor delivers reliable operation and long lifespan. Ideal for applications requiring high torque and efficiency, it's a reliable choice for demanding industrial settings.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Packaging Machinery
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.8-3.8/1.9 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 48.00
Product info last updated on March 4, 2026 10:48pm UTC
Category: Motors
