Three-Phase Motor, 60 HP, 364TSC Frame, 380/460V AC Voltage, 3, 570 Nameplate RPM MPN:C60P1FSCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0398804
Three-Phase Motor, 60 HP, 364TSC Frame, 380/460V AC Voltage, 3, 570 Nameplate RPM

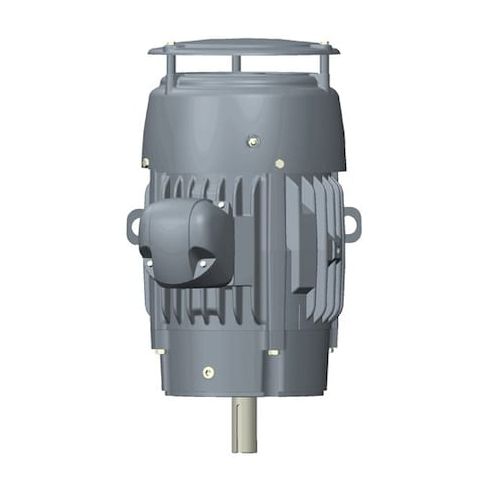

This 60 HP three-phase motor from US Motors is designed for heavy-duty applications, delivering reliable performance and efficiency. With a 364TSC frame and 380/460V AC voltage, it's suitable for a wide range of industries, including manufacturing, oil and gas, and water treatment. The motor's totally enclosed fan cooled design and rigid base mounting ensure optimal cooling and stability, while its 93.6% nominal efficiency reduces energy costs. Ideal for use in applications such as pumps, fans, and compressors, this motor is CSA certified and meets the highest standards for quality and performance.
Top product features:
- Three-phase operation for efficient power transmission
- Totally enclosed fan-cooled motor enclosure for reliable operation in harsh environments
- CW/CCW motor shaft rotation for versatility in application integration
Top product applications:
- Industrial Pump Systems
- Material Handling Equipment
- Textile Manufacturing Machinery
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 3,570, Frame 364TSC, Voltage 380/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 68.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, 3,001-3,600, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 36.00
- Package Height: 45.00
- Package Weight: 750.00
Product info last updated on February 4, 2026 7:39pm UTC
Category: Motors
