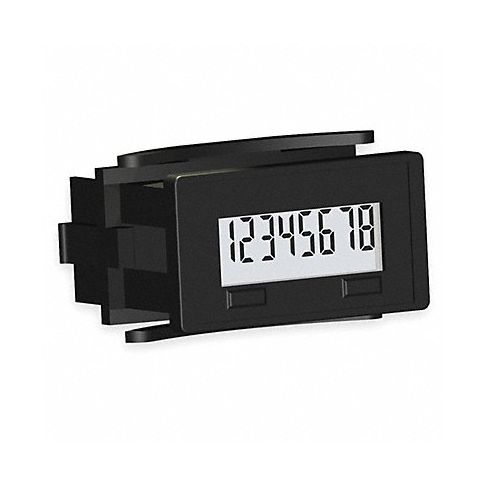

Electronic Counter 8 Digits LCD MPN:6300-1500-0000

Redington Hour Meters and Counters
63 Series
• Black characters on white background
Conform to NEMA 4, 4X, and 12 specifications.
UL and C-UL Recognized, CE Certified, RoHS Compliant.

Technical Specifications

• Item Electronic Counter
• Number of Digits 8
• Display LCD
• Character Height 0.32 in Black Numbers on White Background
• Max. Counts per Second 40 Low Speed Mode, 500 High Speed Mode
• Input Signal 3 to 30V DC
• Output Rating 0.1A @ 30V DC
• Output Open-Drain MOSFET
• Mounting Rectangular Panel with Clip
• Height 1.1 in
• Depth 1.5 in
• Width 1.1 in
• Series 63
• Scaler No
• Preset No
• Power Required Self Powered (15+ yr Lithium Battery)
• Min. On/Off Pulse 1.0 msec in High Speed Mode, 12.5 msec in Low Speed Mode
• Reset Type Front Panel Push Button
• Interface None
• Connector Type 6 Screw Terminals
• Standards CE, EMC Compliant EN61326:2001, European WEEE And RoHS Compliant, UL/cUL
• NEMA Rating 12, 4, 4X
• IP Rating 66
• Fits 1.79 in x 0.89 in Panel Cutout
• Accuracy 100%

Manufacturer Details

• Manufacturer: Trumeter
• Condensed Mfg Number: 630015000000
• MPN: 6300-1500-0000

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MY
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9106905520
• GDS Category Name: Counters
• GDS Family Name: Counters and Hour Meters
• GDS Segment Name: Electrical
• UNSPSC: 41111902
• UNSPSC Class ID: 19
• UNSPSC Commodity Name: Indicating and recording instruments
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Electronic counters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
