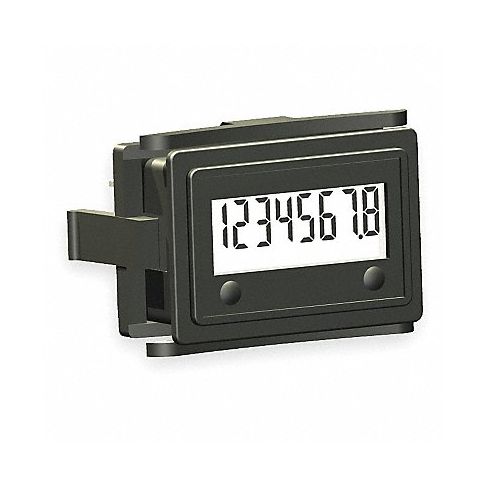

LCD Hour Meter 1.60 in Flange Mini Flush MPN:3410-2000

Redington Hour Meters and Counters
3410 and 3400 Series
• 8-digit display has 7mm characters
Conform to NEMA 4, 4X, and 12 specifications. Solid-state circuitry has no moving parts to break or wear out. Compact counters require minimal behind-the-panel space. Lens is polarized for easy viewing even in sunlight. Epoxy-encapsulated for max. protection against vibration, shock, and water.
UL and C-UL Recognized, CE Certified, RoHS Compliant.

Technical Specifications

• Item Hour Meter
• Display Type LCD
• Time Range 0 to 9999999.9
• Bezel Face Size 1.60 in x 1.10 in
• Bezel Face Shape Rectangular
• Bezel Face Type Flush Mount
• Elapsed Time To 999,999.9
• Hz 50/60 Hz
• Number of Digits 8
• Display Units Hours/Tenths
• Bezel To Back Length 0.75 in
• Depth 1.0 in
• Length 1.6 in
• Width 1.1 in
• Ambient Temp. Range -40 Degrees to 185 Degrees F
• NEMA Rating 12, 4, 4X
• Input Type 10 to 300 V DC or 20 to 300 V AC
• Reset Type Non Resettable
• Temp. Range -40 Degrees to 185 Degrees F
• Fits 1.45 in X 0.95 in Panel Cutout
• Mounting Method Clip
• Terminal Type 1/4 in Spade Connector

Manufacturer Details

• Manufacturer: Trumeter
• Condensed Mfg Number: 34102000
• MPN: 3410-2000

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MY
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9107008000
• GDS Category Name: Hour Meters
• GDS Family Name: Counters and Hour Meters
• GDS Segment Name: Electrical
• UNSPSC: 39121523
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 23
• UNSPSC Commodity Name: Timer controls
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
