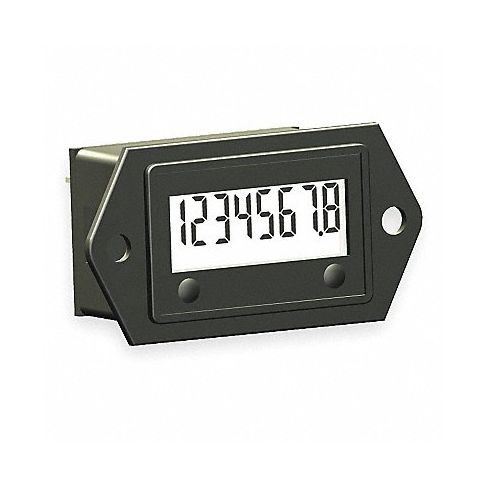

LCD Hour Meter 2-Hole 1.10 in Flange MPN:3410-0000
LCD Hour Meter 2-Hole 1.10 in Flange is perfect for use with diesel generators, compressors or any other machinery that operates on an hour meter basis. Its key specification is its ability to accurately display hours used which can range from 99,999 to 0, ensuring that users always have up-to-date information about the machine's usage. The flange design allows easy installation onto most machinery as well as providing protection against dust and water splashes while working. Additionally, it comes with a magnetic bracket for wall or panel mounting giving customers multiple options when locating this unit within their workspace. Its battery backup maintains memory of hours even during power outages making sure that no time is lost during transfer between machinery operations.
Technical Specifications
- Item Hour Meter
- Display Type LCD
- Time Range 0 to 9999999.9
- Bezel Face Size 2.13 in x 1.10 in
- Bezel Face Shape Rectangular
- Bezel Face Type Flange Mount
- Elapsed Time To 999,999.9
- Hz 50/60 Hz
- Number of Digits 8
- Display Units Hours/Tenths
- Bezel To Back Length 0.75 in
- Depth 1.0 in
- Length 1.75 in
- Width 1.1 in
- Ambient Temp. Range -40 Degrees to 185 Degrees F
- NEMA Rating 12, 4, 4X
- Input Type 10 to 300 V DC or 20 to 300 V AC
- Reset Type Non Resettable
- Temp. Range -40 Degrees to 185 Degrees F
- Fits 1.45 in X 0.95 in Panel Cutout
- Mounting Method 2-Screw
- Terminal Type 1/4 in Spade Connector
Manufacturer Details
- Manufacturer: Trumeter
- Condensed Mfg Number: 34100000
- MPN: 3410-0000
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MY
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9107008000
- GDS Category Name: Hour Meters
- GDS Family Name: Counters and Hour Meters
- GDS Segment Name: Electrical
- UNSPSC: 39121523
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 23
- UNSPSC Commodity Name: Timer controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
