Spherical Plain, 30mm Bore, 75mm OD MPN:GX 30F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2081381

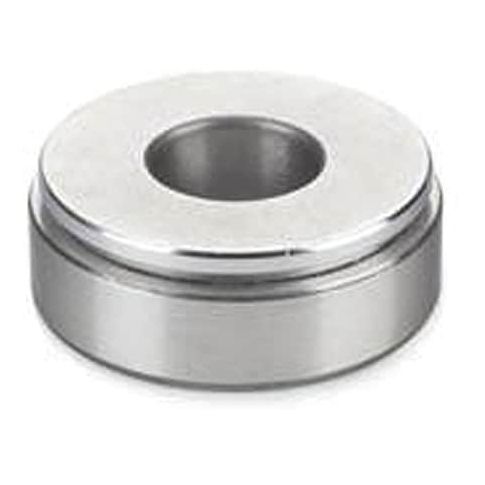

Spherical Plain, 30mm Bore, 75mm OD
The Tritan Spherical Plain Bearing is a high-performance bearing designed for demanding applications. With a 30mm bore and 75mm OD, it provides a large load-carrying capacity of 335kN, making it ideal for heavy-duty machinery and equipment. The PTFE liner and alloy steel construction ensure smooth operation and durability in extreme temperatures (-50°F to 300°F). Suitable for radial loads and single-direction thrust, this bearing is perfect for use in industrial equipment, agricultural machinery, and heavy machinery applications. Its compact size and high load capacity make it an excellent choice for applications requiring high precision and reliability.
Top product features:
- Spherical shape allows for smooth rotation and reduced friction in radial load applications.
- PTFE liner material provides low friction and wear resistance in the bearing.
- Chrome plating finish enhances durability and corrosion resistance.
Top product applications:
- Robotics
- Automotive Steering Systems
- Aerospace Industry
Spherical Plain Bearing, Liner Material PTFE, Bore Diameter 30 mm, Ball Diameter 82 mm, Outer Ring Width 19 mm, Outside Diameter 75 mm, Outer Ring Material Alloy Steel, Ball Material Alloy Steel, Closure Open, Dynamic Radial Load Capacity 335 kN, Finish Chrome Plated, Flat Diameter 30 mm, Inner Ring Width 19 mm, Load Direction Radial, Thrust Single Direction, Lubricant Material MoS2, Maximum Temperature 300 Degrees F, Minimum Temperature -50 Degrees F, Overall Width 26 mm
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.95
- Package Width: 2.95
- Package Height: 1.02
- Package Weight: 1.38
Product info last updated on February 1, 2026 11:25am UTC
Category: Bearings, V-belts and Power Transmission Equipment
