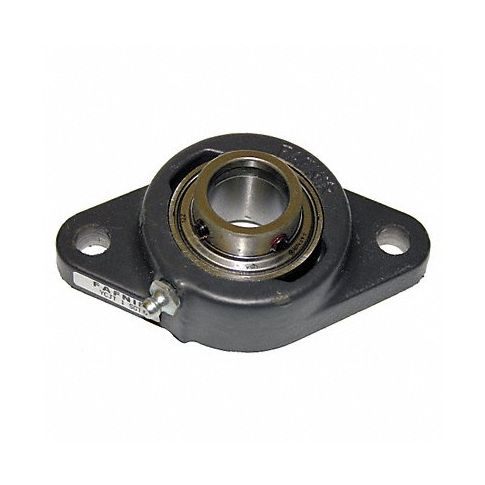

2 Bolt Flange Brg Radial Ball 3/4in Bore MPN:YCJT 3/4 SGT
The 2 Bolt Flange Brg Radial Ball Bearing is an essential component designed to support axial loads, made of Chrome steel that provides exceptional durability, corrosion resistance, and high rotational speeds. Its 3/4 inch bore size along with the unique arrangement of the balls makes it ideal for use in applications involving both radial and thrust loads making them suitable for multiple industries such as automotive, manufacturing, or aerospace sectors where maintenance and efficiency are crucial factors. By replacing conventional bushings or sleeves, users will experience longer-lasting operation, smoother rotations, and reduced friction, while also ensuring precise alignment and minimal vibrations due to the high degree of precision engineered during its manufacture. With its diverse applicability and reliability, this ball bearing is an excellent investment for professionals in maintenance or design roles seeking quality products to optimize their machinery's performance.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 17/32 in
- Series YCJT
- Bolt Size 3/8 in
- Overall Height 4 13/32 in
- Overall Width 1 15/32 in
- Overall Length 2 3/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 3,200 lb
- Static Load Capacity 1,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 3/32 in
- Dimension B 1 1/4 in
- Dimension E 1 33/64 in
- Dimension F 1 5/64 in
- Dimension H 4 13/32 in
- Dimension J 3 17/32 in
- Dimension L 2 3/8 in
- Dimension N 27/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: YCJT34SGT
- MPN: YCJT 3/4 SGT
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
