2 Bolt Flng Brg Radial Ball 1in Bore MPN:YCJT 1 SGT

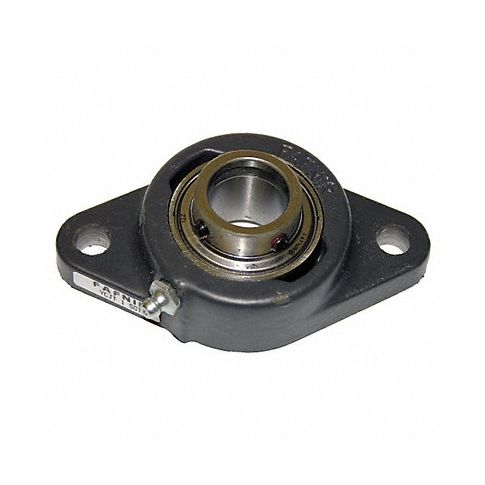

2 Bolt Flng Brg Radial Ball 1in Bore
This 2 Bolt Flange Bearing from Timken is an essential component for various machinery and equipment. Designed with a bearing insert type of ball and a bore diameter of 1 inch, it is suitable for heavy-duty applications that require high load capacity. The 2-bolt flange design ensures easy installation, while the set screw locking feature maintains proper alignment and prevents wobbling during operation. It's ideal for industrial applications such as agricultural machinery, textile machines, conveyors, and compressors where smooth power transmission is critical. Upgrade your equipment with this reliable bearing and experience efficient and long-lasting performance.
Top product features:
- Heavy-duty construction for high load capacity applications
- Easy installation with 2-bolt flange design
- Set screw locking feature for proper alignment and wobbling prevention
Top product applications:
- Agricultural machinery (e.g., tractors, combines)
- Industrial equipment (e.g., conveyor belts, mixers)
- Construction machines (e.g., excavators, bulldozers)
✓ Buy Timken item #YCJT 1 SGT and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 29/32 in
- Series YCJT
- Bolt Size 7/16 in
- Overall Height 4 7/8 in
- Overall Width 1 1/2 in
- Overall Length 2 3/4 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 3,550 lb
- Static Load Capacity 1,730 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 7/64 in
- Dimension B 1 3/8 in
- Dimension E 1 37/64 in
- Dimension F 1 19/64 in
- Dimension H 4 7/8 in
- Dimension J 3 29/32 in
- Dimension L 2 3/4 in
- Dimension N 29/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: YCJT1SGT
- MPN: YCJT 1 SGT
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
