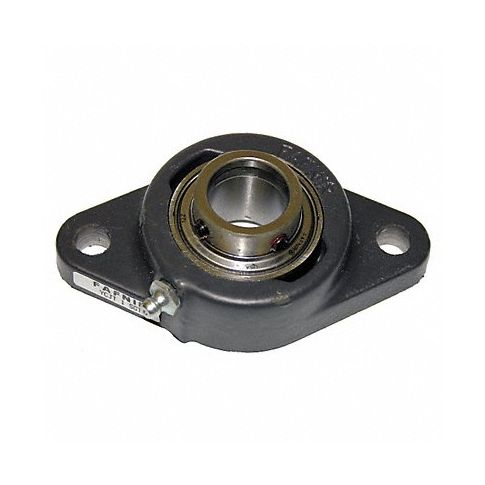

2 Bolt Flng Brg Radial Ball 1 1/2in Bore MPN:YCJT 1 1/2 SGT
Look no further than the Timken 2-Bolt Flange Bearing for your heavy-duty machinery needs! This versatile bearing is made from high-quality cast iron, providing enhanced strength and durability in tough conditions. The mounted bearing item features a proven design that makes installation and maintenance a breeze. With a ball bearing insert type and bore diameter of 1 1/2 inches, this bearing can handle radial and thrust loads with ease. Its set screw shaft locking feature ensures a secure fit for your machinery, while the cast iron housing provides protection against harsh environmental conditions. Whether you're in agriculture, construction, or power transmission, the Timken 2-Bolt Flange Bearing is the ultimate solution for enhanced performance and efficiency.
Top product features:
- High-Quality Cast Iron Construction Provides enhanced strength and durability in tough conditions.
- Ball Bearing Insert Type Allows for handling of radial and thrust loads with ease.
- Secure Set Screw Shaft Locking Feature Ensures a secure fit for your machinery.
Top product applications:
- Agricultural machinery Handling radial and thrust loads in harvesters, combines, planters, and sprayers.
- Construction equipment Enhancing performance in excavators, cranes, backhoes, and conveyors.
- Power transmission systems Providing secure fitting in gearboxes, couplings, and driveshafts.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series YCJT
- Bolt Size 1/2 in
- Overall Height 6 3/4 in
- Overall Width 2 1/8 in
- Overall Length 4 1/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,150 lb
- Static Load Capacity 4,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 1/2 in
- Dimension B 1 15/16 in
- Dimension E 2 9/64 in
- Dimension F 2 3/64 in
- Dimension H 6 3/4 in
- Dimension J 5 21/32 in
- Dimension L 4 1/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: YCJT112SGT
- MPN: YCJT 1 1/2 SGT
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
