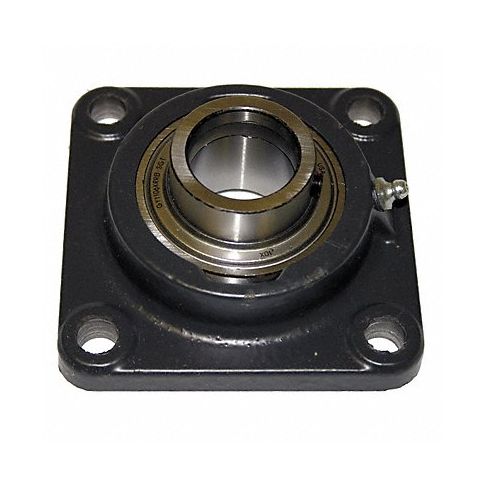

4 Bolt Flange Brg Radial Ball 7/8in Bore MPN:YCJ 7/8 SGT
4 Bolt Flange Brg Radial Ball 7/8in Bore
The four bolt flanged radial ball bearing features a 0.875 bore diameter and made of Chrome steel for exceptional resistance to wear while being used to mount shafts onto mating flanges securely with precision thanks to its balls ensuring load distribution uniformly providing the lowest friction & minimizes play or wobble effect essential in demanding applications where stable operations matter including but not limited to transmissions, hydraulic systems, machine tool spindles, & motor assemblies among others.
✓ Buy Timken item #YCJ 7/8 SGT and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 7/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 2 49/64 in
- Series YCJ
- Bolt Size 3/8 in
- Overall Height 1 17/32 in
- Overall Width 3 3/4 in
- Overall Length 3 3/4 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 3,550 lb
- Static Load Capacity 1,730 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 7/64 in
- Dimension B 1 3/8 in
- Dimension D 2 9/16 in
- Dimension E 1 37/64 in
- Dimension F 1 19/64 in
- Dimension J 2 49/64 in
- Dimension L 3 3/4 in
- Dimension N 29/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: YCJ78SGT
- MPN: YCJ 7/8 SGT
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:34am UTC
Category: Bearings
