4 Bolt Flng Brg Radial 2 7/16in Bore MPN:YCJ 2 7/16
SKU
226-CXO-46R666

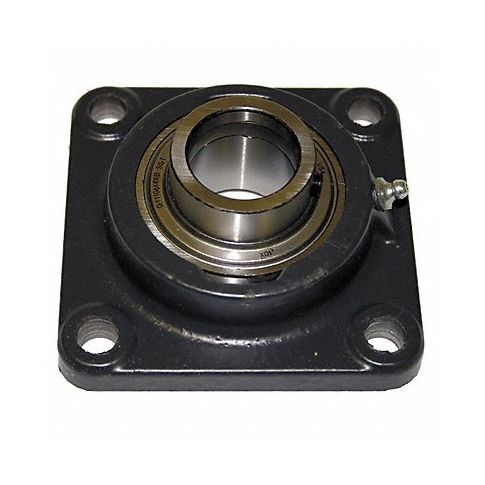

4 Bolt Flng Brg Radial 2 7/16in Bore
The Timken 4-Bolt Flange Bearing is designed for heavy duty and demanding applications where precision and reliability are essential. The flanged bearing has a large surface area that allows for easy mounting and provides added stability. With its ball bearing insert type, the bearing delivers optimal performance and durability in a wide range of applications including construction equipment, agricultural machinery, and industrial machines. Its 2-7/16-inch bore size makes it suitable for use with shafts of that diameter, while the set screw shaft locking type ensures secure fastening. Overall, this flange bearing is an ideal choice for those looking for a reliable and long-lasting solution to their power transmission needs.
Top product features:
- Large surface area for easy mounting
- Ball bearing insert type for optimal performance and durability
- Set screw shaft locking type for secure fastening
Top product applications:
- Construction equipment heavy-duty machinery used in construction projects such as excavators and bulldozers
- Agricultural machinery implements used in farming, such as tractors and harvesters
- Industrial machines equipment designed to perform industrial operations like assembly lines or manufacturing equipment
Buy Timken item #YCJ 2 7/16 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 7/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 5/8 in
- Series YCJ
- Bolt Size 5/8 in
- Overall Height 2 29/32 in
- Overall Width 6 7/8 in
- Overall Length 6 7/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 13,200 lb
- Static Load Capacity 8,000 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 15/16 in
- Dimension B 2 9/16 in
- Dimension D 5 3/8 in
- Dimension E 2 59/64 in
- Dimension F 3 in
- Dimension J 5 5/8 in
- Dimension L 6 7/8 in
- Dimension N 43/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: YCJ2716
- MPN: YCJ 2 7/16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
