2 Bolt Flng Brg Radial 1 7/16in Bore MPN:VCJT 1 7/16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-46R596

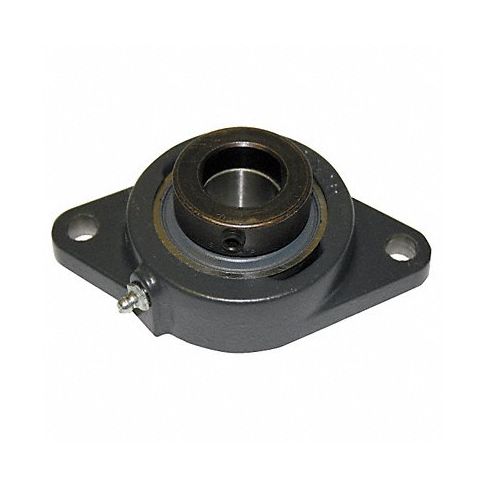

2 Bolt Flng Brg Radial 1 7/16in Bore
The Timken VCJT23-TV bearing is specifically designed for harsh industrial environments where it needs to operate reliably despite frequent starts and stops or heavy loads. With a 1-7/16 bore diameter and ball bearing insert type, this two-bolt flange bearing ensures efficient operation in demanding applications. Its eccentric locking collar ensures accurate alignment for optimal performance and minimized wear and tear. This bearing is ideal for various industrial equipment including conveyors, pumps, motors, and generators. The robust construction and versatile design of the Timken VCJT23-TV bearing make it an essential component in your power transmission systems.
Top product features:
- Bore diameter of 1-7/16
- Ball bearing insert type
- Eccentric locking collar
Top product applications:
- Heavy-duty industrial machinery
- Pumps and compressors
- conveyor systems
Buy Timken item #VCJT 1 7/16 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 7/16 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series VCJT
- Bolt Size 1/2 in
- Overall Height 6 1/8 in
- Overall Width 1 31/32 in
- Overall Length 3 5/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 6,400 lb
- Static Load Capacity 3,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 11/32 in
- Dimension B 1 17/32 in
- Dimension E 1 31/32 in
- Dimension H 6 1/8 in
- Dimension J 5 1/8 in
- Dimension L 3 5/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VCJT1716
- MPN: VCJT 1 7/16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
