2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:VCJT 1 1/4S
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-46R589

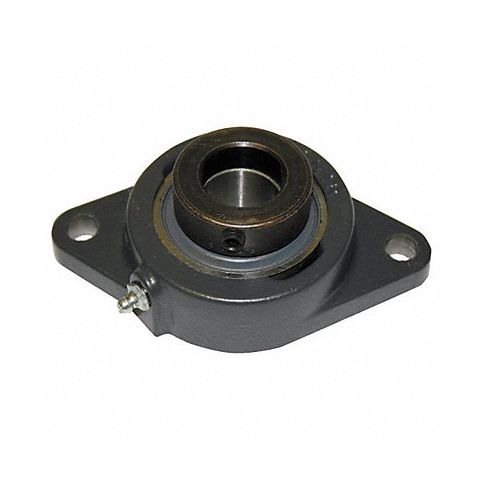

2 Bolt Flng Brg Radial Ball 1 1/4in Bore
The 2 Bolt Flanging Type Radial Ball Bearing, features a one-piece brass construction that comes with 1-1/4 bore diameter suited to fit in various industries, including heavy equipment machinery, conveyors or gear reducers for increased load capacity and reduced maintenance costs. Additionally, the product offers dimensional accuracy to guarantee proper alignment and durability while maintaining smooth operation even under heavy loads thanks to its radial contact design enabling lower noise levels when functioning at optimal conditions making it a cost-effective solution within power transmission applications.
✓ Buy Timken item #VCJT 1 1/4S and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 19/32 in
- Series VCJT
- Bolt Size 7/16 in
- Overall Height 5 9/16 in
- Overall Width 1 53/64 in
- Overall Length 3 1/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 4,900 lb
- Static Load Capacity 2,500 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 3/16 in
- Dimension B 1 13/32 in
- Dimension E 1 53/64 in
- Dimension H 5 9/16 in
- Dimension J 4 19/32 in
- Dimension L 3 1/8 in
- Dimension N 29/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VCJT114S
- MPN: VCJT 1 1/4S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
