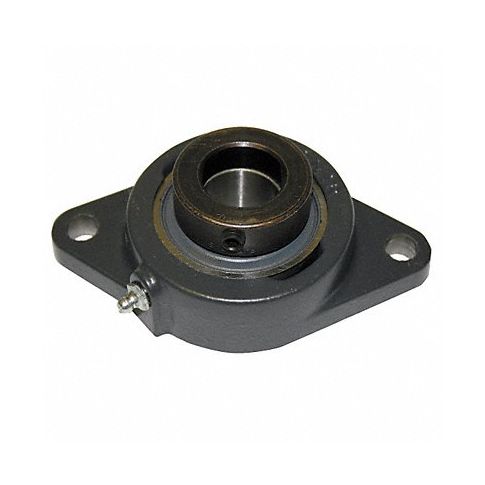

2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:VCJT 1 1/4
SKU
226-CXO-46R588
2 Bolt Flng Brg Radial Ball 1 1/4in Bore
Timken introduces its VCJT 1 1/4 - 2 Bolt Flange Bearing for your power transmission needs. This bearing is designed to provide exceptional performance in heavy-duty applications with its sturdy build and durable material. The eccentric locking collar ensures that the bearing stays securely locked into place while transmitting power. The ball insert type offers excellent precision, and its 1 1/4-inch bore size makes it ideal for various machinery, including but not limited to motors, generators, pumps, compressors, and fans. Upgrade your equipment's efficiency with Timken's high-quality bearings that last long while offering optimal performance. Order now and get ready to experience the difference!
Top product features:
- Bearing insert type is ball for precision and accuracy.
- Bore size is 1 1/4 inch for versatile applications.
- Eccentric locking collar for secure mounting in power transmission systems.
Top product applications:
- Ideal for transmitting power in motors, generators, pumps, and compressors.
- Used in various industries such as construction, agriculture, manufacturing, and mining.
- Can be used in heavy-duty applications where precision and durability are essential.
Get Timken item #VCJT 1 1/4 from our selection of Hardware Accessories while supporting Veterans 🎖.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series VCJT
- Bolt Size 1/2 in
- Overall Height 6 1/8 in
- Overall Width 1 31/32 in
- Overall Length 3 5/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 6,400 lb
- Static Load Capacity 3,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 11/32 in
- Dimension B 1 17/32 in
- Dimension E 1 31/32 in
- Dimension H 6 1/8 in
- Dimension J 5 1/8 in
- Dimension L 3 5/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VCJT114
- MPN: VCJT 1 1/4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
