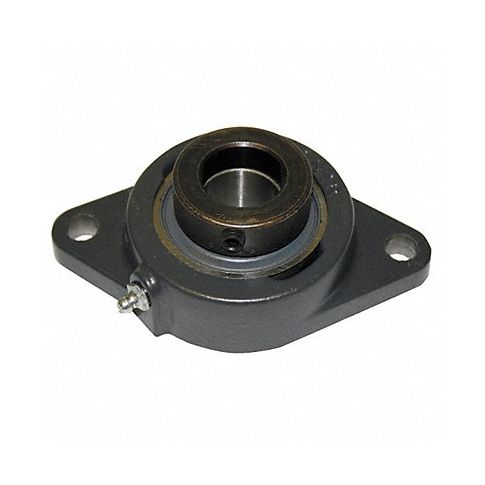

2 Bolt Flng Brg Radial Ball 1 1/2in Bore MPN:VCJT 1 1/2
SKU
226-CXO-46R587
2 Bolt Flng Brg Radial Ball 1 1/2in Bore
Introducing Timken's 2 Bolt Flange Bearing with a 1 1/2 inch bore diameter - perfect for your industrial and agricultural equipment needs! This durable ball bearing insert provides smooth rotation and high load capacity, while the 2-bolt flange mounting ensures stability and strength. With an eccentric locking collar for added security, this versatile bearing is suitable for various applications such as robotics, conveyor systems, pumps, agricultural machinery, and much more! Enhance your equipment's performance and efficiency with Timken's reliable and trusted products today.
Top product features:
- Versatile application suitable for various industries and machinery
- Durable ball bearing insert for high load capacity
- Eccentric locking collar for added security and stability
Top product applications:
- Robotics for use in robotic systems and machines
- Conveyor systems for enhancing performance and stability in conveyors
- Agricultural machinery for improving efficiency and durability in farm equipment
Buy Timken item #VCJT 1 1/2 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series VCJT
- Bolt Size 1/2 in
- Overall Height 6 3/4 in
- Overall Width 2 7/32 in
- Overall Length 4 1/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,150 lb
- Static Load Capacity 4,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 1/2 in
- Dimension B 1 23/32 in
- Dimension E 2 7/32 in
- Dimension H 6 3/4 in
- Dimension J 5 21/32 in
- Dimension L 4 1/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VCJT112
- MPN: VCJT 1 1/2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
