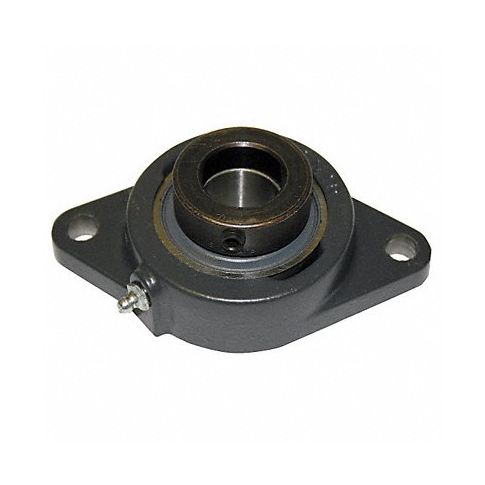

2 Bolt Flng Brg Radial Ball 1in Bore MPN:VCJT 1
The Timken VCJT 2-Bolt Flange Bearing with a 1-inch Bore Diameter is designed to provide reliable support for a variety of industrial applications. Made from high-quality materials, this bearing features a durable ball insert that offers superior performance and extended service life. Its compact design allows for easy installation and can be used in confined spaces. With an eccentric locking collar for added stability, this bearing is suitable for use with shaft diameters ranging from 0.25 to 0.625 inches. Its wide range of applications includes machinery, agricultural equipment, and construction machinery, making it a versatile and cost-effective solution for all your bearing needs. Order the Timken VCJT 1 today and experience the benefits of quality engineering!
Top product features:
- 1-inch Bore Diameter for versatility in shaft sizes
- Eccentric Locking Collar for added stability
- Durable ball insert for superior performance and extended service life
Top product applications:
- Machinery that requires shaft support and movement in confined spaces
- Agricultural equipment requiring precise alignment and reduced maintenance
- Construction machinery requiring durable components in tough operating conditions
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 29/32 in
- Series VCJT
- Bolt Size 7/16 in
- Overall Height 4 7/8 in
- Overall Width 1 43/64 in
- Overall Length 2 3/4 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 3,550 lb
- Static Load Capacity 1,730 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 1/8 in
- Dimension B 1 7/32 in
- Dimension E 1 43/64 in
- Dimension H 4 7/8 in
- Dimension J 3 29/32 in
- Dimension L 2 3/4 in
- Dimension N 29/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VCJT1
- MPN: VCJT 1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
