4 Bolt Flng Brg Radial Ball 2in Bore MPN:VCJ 2

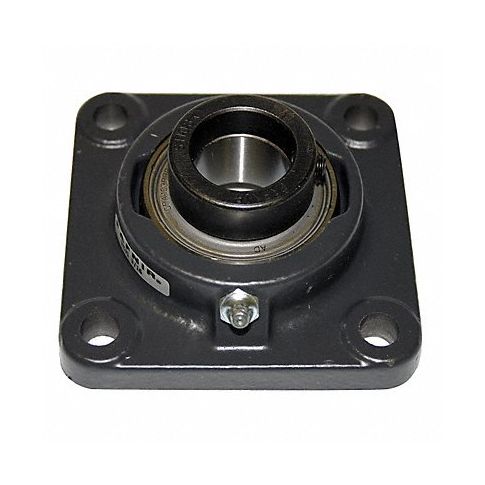

4 Bolt Flng Brg Radial Ball 2in Bore
Looking for durable, cost-effective solutions for your heavy duty operations? Look no further than Timken's 4-Bolt Flange Bearing with Ball insert type design, 2 inch bore diameter, and Eccentric Locking Collar. These bearings provide excellent load capacity and stability, perfect for use in applications such as agricultural equipment, industrial machines, and conveyor systems. Shop Timken's 4-Bolt Flange Bearing today and experience the difference for yourself!
Top product features:
- High load capacity for heavy duty operations
- Durable and cost-effective
- Excellent stability for agricultural equipment, industrial machines, and conveyor systems
Top product applications:
- Agricultural equipment (e.g., harvesters, combines, tractors)
- Industrial machines (e.g., gearboxes, conveyor systems, machinery)
- Conveyor systems (e.g., transportation of materials in factories or warehouses)
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Timken item #VCJ 2.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series VCJ
- Bolt Size 5/8 in
- Overall Height 2 35/64 in
- Overall Width 6 3/8 in
- Overall Length 6 3/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 10,800 lb
- Static Load Capacity 6,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 27/32 in
- Dimension B 1 29/32 in
- Dimension D 4 3/4 in
- Dimension E 2 43/64 in
- Dimension E Max. 2 43/64 in
- Dimension J 5 1/8 in
- Dimension L 6 3/8 in
- Dimension N 43/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VCJ2
- MPN: VCJ 2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 13, 2024 5:30am UTC
Category: Bearings
