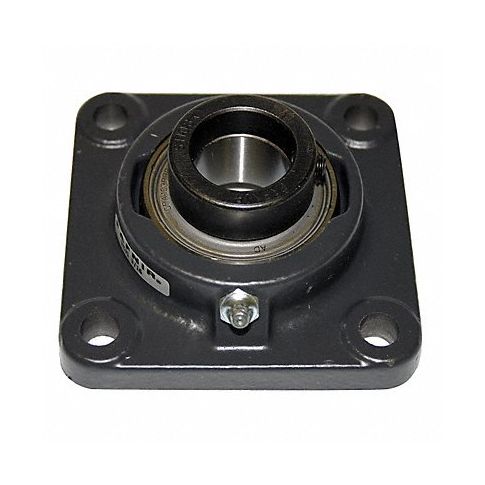

4 Bolt Flng Brg Radial Ball 1 3/4in Bore MPN:VCJ 1 3/4
Free Shipping
In Stock
Typical users of this fan blade include HVAC and industrial system designers or anyone who needs an efficient method for dispersing air evenly over a wide area. With its 2-5/8 inches diameter, it provides a broad sweep to effectively move large volumes of air, making it ideal in factories, warehouses, and residential settings where temperature regulation is paramount. This blade is designed for quiet operation as well due to its Aerofoil design that minimizes turbulence, ensuring an even distribution of airflow while reducing operational noise levels. Additionally, its corrosion-resistant coating provides durability making it suitable in harsh environments. Overall, this fan blade offers efficiency, longevity and noise reduction, making it a versatile solution for anyone who needs to efficiently move air in various applications.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/4 in
- Shaft Locking Type Eccentric Locking Collar
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 1/8 in
- Series VCJ
- Bolt Size 1/2 in
- Overall Height 2 7/32 in
- Overall Width 5 3/8 in
- Overall Length 5 3/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,160 lb
- Static Load Capacity 4,600 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 17/32 in
- Dimension B 1 23/32 in
- Dimension D 4 1/8 in
- Dimension E 2 15/64 in
- Dimension E Max. 2 15/64 in
- Dimension J 4 1/8 in
- Dimension L 5 3/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VCJ134
- MPN: VCJ 1 3/4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
