Pillow Block Brg 1 11/16in Bore Cst Iron MPN:VAS 1 11/16
SKU
226-CXO-46R562

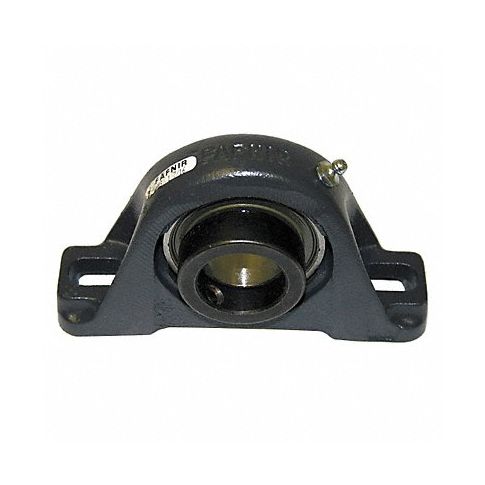

Pillow Block Brg 1 11/16in Bore Cst Iron
The pillow block bearing is an efficient power transmission component providing low friction torque transfer, accommodating angular misalignment resulting in extended equipment lifespan. With a bore size of 1 11/16 inches (40mm) and constructed from cast iron, it is designed to support relatively lower loads. This versatile bearing has an outer diameter of 3.35 inches (85mm) and overall length of 5.25 inches (133mm), with a mounting flange and two pre-drilled mounting holes ensuring easy installation in diverse applications. Ideally suited for heavy machinery manufacturers, the pillow block bearing is widely used by industries such as cranes, presses, material handling equipment, textile, pulp and paper industry.
Get Timken item #VAS 1 11/16 from our selection of Hardware Accessories while supporting Veterans 🎖.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 11/16 in
- Bolt Hole Center-to-Center 5 7/8 in
- Mounting Surface to Shaft Center 2 1/8 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Eccentric Locking Collar
- Bearing Insert Material 52100 Chrome Steel
- Series VAS
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 4 3/16 in
- Overall Width 2 in
- Overall Length 7 17/32 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,160 lb
- Static Load Capacity 4,600 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VAS11116
- MPN: VAS 1 11/16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00N06ZCW2
Product info last updated on January 24, 2024 6:06pm UTC Category: Bearings
