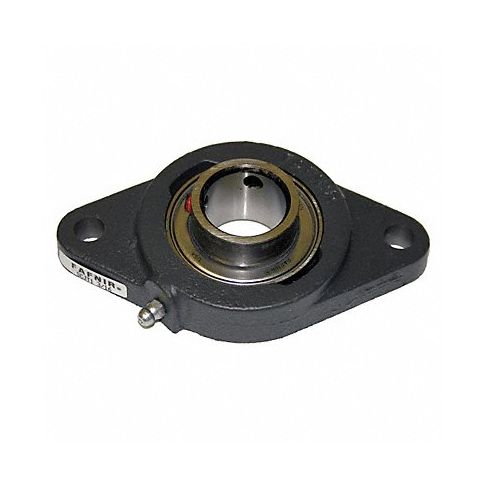

2 Bolt Flng Brg Radial Ball 1 1/2in Bore MPN:SCJT 1 1/2
Free Shipping
In Stock
Experience durable and reliable performance with Timken's 2-bolt flange bearing in a 1 1/2 inch bore size. Engineered to last longer, these bearings offer excellent resistance to wear and fatigue with their steel construction and ball insert type design that provides precision and smooth operation. With shaft locking features using set screws, this bearing is ideal for agricultural equipment, manufacturing machinery, and various power transmission systems. The 2-bolt flange bearings ensure easy mounting and alignment, making them a versatile and cost-effective choice for various applications. By investing in Timken's 2-bolt flange bearings with a 1 1/2 inch bore size, you can benefit from the company's century-old expertise in bearing technology while supporting veteran-owned businesses.
Top product features:
- Steel construction for durability and resistance to wear
- Ball insert type bearing for precision and smooth operation
- Set screw shaft locking for easy mounting and alignment
Top product applications:
- Agricultural machinery: Used as a bearing in equipment such as tractors and combines to reduce friction and maintain smooth operation
- Manufacturing equipment: Utilized as a bearing in machines like stamping presses or grinding equipment for precision movement
- Industrial automation systems: Used as a shaft locking component in robotics or conveyor systems for easy assembly and adjustment
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series SCJT
- Bolt Size 1/2 in
- Overall Height 6 3/4 in
- Overall Width 1 39/64 in
- Overall Length 4 1/8 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 8,150 lb
- Static Load Capacity 4,000 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
- Dimension A 1 1/32 in
- Dimension B 1 35/64 in
- Dimension E 1 39/64 in
- Dimension F 2 1/16 in
- Dimension H 6 3/4 in
- Dimension J 5 21/32 in
- Dimension L 4 1/8 in
- Dimension N 33/64 in
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: SCJT112
- MPN: SCJT 1 1/2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
