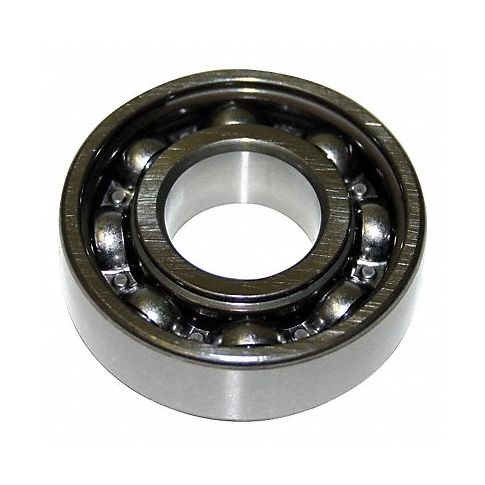

Rad Ball Brg 6026 130mm Bore Alloy Stl MPN:9126K
Introducing Timken's Radial Ball Bearing - the ultimate solution for all your industrial and automotive needs! Designed with precision engineering, this single-row radial ball bearing ensures a high level of durability, efficiency and smooth operation in any application. With its unmounted bearing item and open seal/shield type, you can rest assured that your bearing will stay protected from dust, dirt, and moisture. The 130mm bore diameter and +/-0.025 mm bore tolerance make it the perfect fit for any application requiring a precise fit. Use it in applications such as pumps, fans, motors, and gearboxes, where maximum efficiency and reliability are essential. Upgrade your machinery today with Timken's Radial Ball Bearing - the ultimate solution for high-performance operation!
Top product features:
- Single-row alignment for precise fit and smooth operation
- Unmounted bearing item for easy installation and maintenance
- Open seal/shield type for enhanced protection against dust, dirt, and moisture
Top product applications:
- Pumps and compressors in various industries such as oil & gas, mining, and chemical processing
- Industrial gears and fans to maintain smooth operation and reduce wear and tear
- Motors and transmissions for optimal performance and efficiency
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Open
- Bore Dia. 130 mm
- Bore Tolerance +0/-.025mm
- Outside Dia. 200 mm
- Outside Dia. Tolerance +0/-.030mm
- Width 33 mm
- ABEC Tolerance 1
- Dynamic Load Capacity 26,000 lb
- Static Load Capacity 20,400 lb
- Max. RPM 1,515 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Quaker Ferrocote
- Industry Number 9126K
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 9126K
- MPN: 9126K
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:39pm UTC Category: Bearings
