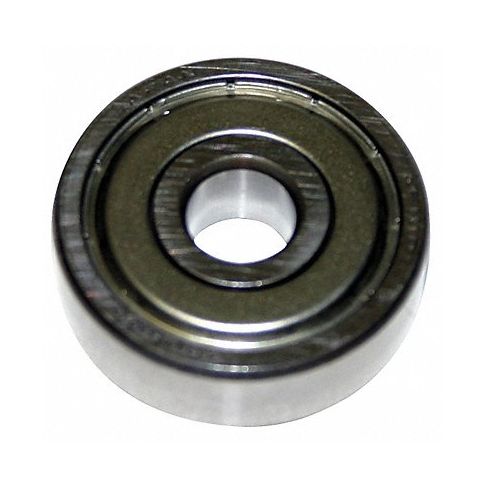

Radial Ball Brg 6008 40mm Bore Alloy Stl MPN:9108KDD
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-45A064
Radial Ball Brg 6008 40mm Bore Alloy Stl
The Timken Radial Ball Bearing model 6008 is ideal for high precision, single-row alignment applications in industrial machinery. Featuring a robust alloy steel construction and double shielded seal/shield type design, this bearing ensures maximum durability and reliability under demanding conditions. With a bore diameter of 40mm and a tolerance of +0/-.012mPower Transmission, it is designed to handle precise movements in various industries. The double shielded seal/shield type provides enhanced protection against contaminants, ensuring smooth and efficient operation.
Top product features:
- Single row alignment for precise movement in industrial machinery
- Double shielded seal/shield type design for enhanced protection against contaminants
- Robust alloy steel construction for maximum durability and reliability
Top product applications:
- Precision machinery and equipment that require single-row alignment for accurate movement
- High-load capacity applications in industries like manufacturing, automotive, and aerospace
- Bearings with high accuracy and dimensional stability in automated robotic systems
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 40 mm
- Bore Tolerance +0/-.012mm
- Outside Dia. 68 mm
- Outside Dia. Tolerance +0/-.013mm
- Width 15 mm
- Shield Material Steel
- ABEC Tolerance 1
- Dynamic Load Capacity 4,500 lb
- Static Load Capacity 2,750 lb
- Max. RPM 4,630 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Chevron SRI 2
- Industry Number 9108KDD
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 9108KDD
- MPN: 9108KDD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
