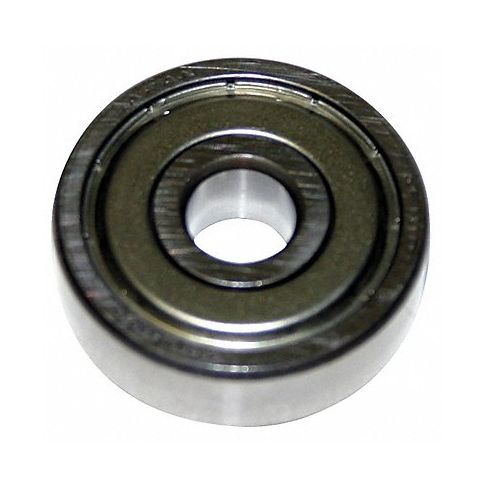

Radial Ball Brg 6004 20mm Bore Alloy Stl MPN:9104KDD
Free Shipping
In Stock
Introducing Timken's Radial Ball Brg 6004 20mm Bore Alloy Stl - the ultimate solution for your bearing needs! This single-row alignment radial ball bearing is designed to provide superior performance and durability in a wide range of applications. With its unmounted bearing item classification, it's perfect for use in construction, agriculture, and manufacturing equipment where precision and reliability are critical. The double shielded seal ensures that your equipment operates at peak efficiency by preventing dirt, dust, and debris from entering the bearing. And with a bore diameter of 20 mm and bore tolerance of +0/-.010m, this ball bearing provides superior performance in even the most demanding applications. Whether you're looking to reduce maintenance costs or improve overall equipment efficiency, Timken's Radial Ball Brg 6004 is the perfect solution for your needs.
Top product features:
- Double shielded seal ensures high-performance in dusty and dirty environments
- Unmounted bearing item classification makes it perfect for various applications
- Single-row alignment design improves precision and reliability
Top product applications:
- Agriculture equipment such as tractors, harvesters, and sprayers
- Construction equipment like excavators, cranes, and forklifts
- Industrial machinery including gears, conveyors, and robotics
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 20 mm
- Bore Tolerance +0/-.010mm
- Outside Dia. 42 mm
- Outside Dia. Tolerance +0/-.011mm
- Width 12 mm
- Shield Material Steel
- ABEC Tolerance 1
- Dynamic Load Capacity 2,400 lb
- Static Load Capacity 1,120 lb
- Max. RPM 8,065 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Timken Pillowblock Grease
- Industry Number 9104KDD
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 9104KDD
- MPN: 9104KDD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
