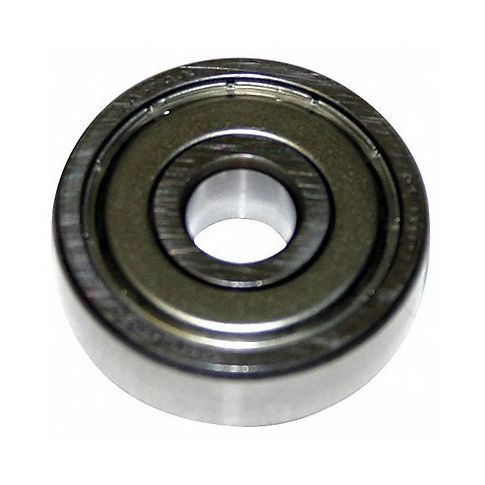

Radial Ball Brg 6003 17mm Bore Alloy Stl MPN:9103KDD
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-45A046
Radial Ball Brg 6003 17mm Bore Alloy Stl
Our high-quality Radial Ball Bearing is perfect for power transmission and industrial machinery. With a single row alignment and double shielded design, it provides exceptional performance in various applications. The 17mm bore diameter makes it suitable for many heavy-duty machinery, while the +0/-.008m tolerance ensures perfect accuracy. Our bearing is designed for optimal precision and durability, enabling you to get the job done right every time. Use it in various industries including construction, agriculture, and manufacturing for a smooth operation. Trust Timken for premium products that never compromise on quality.
Top product features:
- Double shielded seal provides protection against dust and moisture.
- 17mm bore diameter suitable for heavy-duty machinery.
- +0/-.008m tolerance ensures perfect accuracy.
Top product applications:
- Agricultural machinery like tractors and harvesters.
- Construction equipment such as excavators and cranes.
- Industrial machinery like milling machines and lathes.
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 17 mm
- Bore Tolerance +0/-.008mm
- Outside Dia. 35 mm
- Outside Dia. Tolerance +0/-.011mm
- Width 10 mm
- Shield Material Steel
- ABEC Tolerance 1
- Dynamic Load Capacity 1,530 lb
- Static Load Capacity 720 lb
- Max. RPM 9,615 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Timken Pillowblock Grease
- Industry Number 9103KDD
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 9103KDD
- MPN: 9103KDD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
