Radial Ball Brg 6002 15mm Bore Alloy Stl MPN:9102KDD
Free Shipping
In Stock

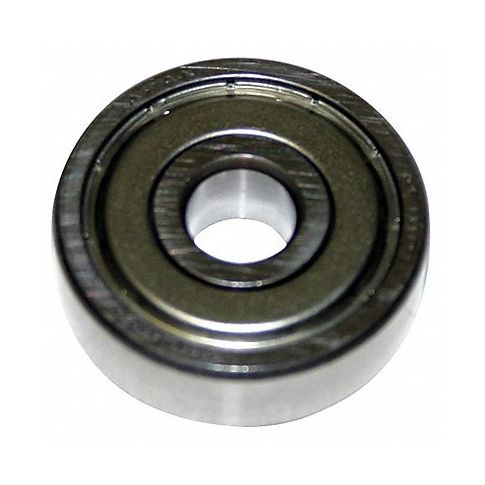

Introducing the Timken Radial Ball Bearing 6002 15mm Bore Alloy Stl - a precision-engineered bearing designed for high performance power transmission applications. This single row radial ball bearing features a lightweight alloy steel construction that ensures durability and long-lasting use, even in demanding conditions. Its unmounted design allows for easy installation and provides flexibility in various industries including machinery and equipment manufacturing, automotive, and aerospace. The double shielded seal prevents dust, dirt, and other contaminants from entering the bearing, ensuring smooth operation and extended life. With its 15mm bore diameter and +0/-0.008m bore tolerance, this bearing is ideal for applications requiring precise alignment and consistent performance. Upgrade your power transmission system with the Timken Radial Ball Bearing 6002 15mm Bore Alloy Stl today!
Top product features:
- Single row alignment for precise bearing performance
- Double shielded seal for extended life and smooth operation
- Lightweight alloy steel construction for durability and long-lasting use
Top product applications:
- Machine tool spindles and precision ball bearing applications
- Precision linear motion systems
- Vehicle transmissions and differentials
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 15 mm
- Bore Tolerance +0/-.008mm
- Outside Dia. 32 mm
- Outside Dia. Tolerance +0/-.011mm
- Width 9 mm
- Shield Material Steel
- ABEC Tolerance 1
- Dynamic Load Capacity 1,430 lb
- Static Load Capacity 630 lb
- Max. RPM 10,638 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Royco 27
- Industry Number 9102KDD
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 9102KDD
- MPN: 9102KDD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
