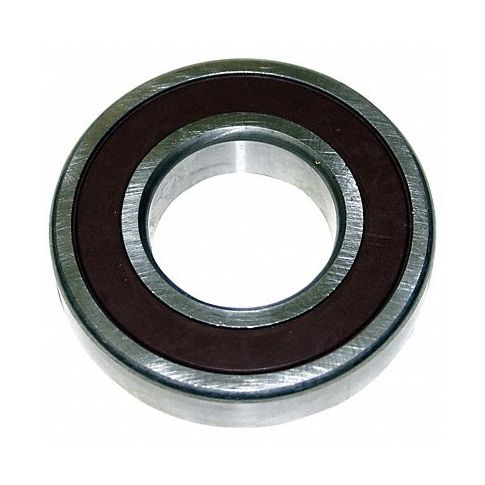

Radial Ball Brg 6001 12mm Bore Alloy Stl MPN:9101PP
Free Shipping
In Stock
Radial ball bearings are critical components in various industrial applications that require smooth movement of objects at high speeds with minimal friction. Timkens 6001-2RSR bearing is specifically designed to fulfill single-row alignment requirements in various industries like food processing, construction equipment, and consumer electronics. This double-sealed, metal shield ball bearing features a bore diameter of 12mm and boasts excellent precision with minimal deviation. With its stainless steel composition, the bearings provide incredible durability and corrosion resistance in various environmental conditions. Ideal for use in robotic systems or agricultural machinery that require compact, lightweight parts, these bearings ensure reduced vibration, minimal wear and increased energy efficiency. Easily available in different quantities through industrial distributors, the 6001-2RSR ball bearing is a cost-effective solution for a wide range of industries looking to optimize their power transmission systems.
Top product features:
- Compact size for use in tight spaces or where minimal width is required
- High precision for smooth movement and reduced vibration
- Double seals to provide protection from dust, dirt, and moisture
Top product applications:
- Robotics and automation systems
- Food processing equipment
- Agricultural machinery
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 12 mm
- Bore Tolerance +0/-.008mm
- Outside Dia. 28 mm
- Outside Dia. Tolerance +0/-.009mm
- Width 8 mm
- Seal Material Rubber
- ABEC Tolerance 1
- Dynamic Load Capacity 1,320 lb
- Static Load Capacity 530 lb
- Max. RPM 12,500 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Royco 27
- Industry Number 9101PP
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 9101PP
- MPN: 9101PP
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
