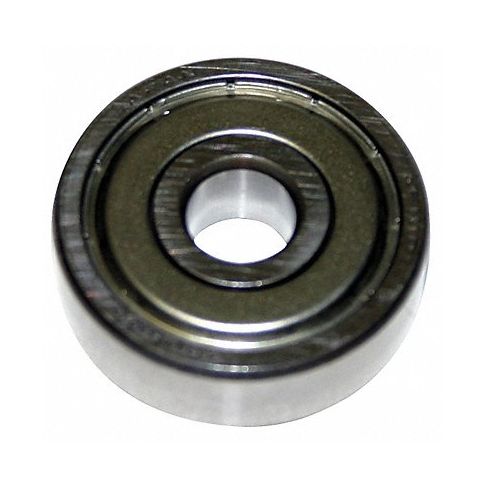

Radial Ball Brg 6318 90mm Bore Alloy Stl MPN:318KDD

Technical Specifications

• Item Radial Ball Bearing
• Unmounted Bearing Item Radial Ball Bearing
• Single Row/Double Row Single Row
• Seal/Shield Type Double Shielded
• Bore Dia. 90 mm
• Bore Tolerance +0/-.020mm
• Outside Dia. 190 mm
• Outside Dia. Tolerance +0/-.030mm
• Width 43 mm
• Shield Material Steel
• ABEC Tolerance 1
• Dynamic Load Capacity 36,500 lb
• Static Load Capacity 24,000 lb
• Max. RPM 1,786 RPM
• Temp. Range -60 Degrees to 200 Degrees F
• Bearing Material Steel
• Cage Material Steel
• Lubrication Chevron SRI 2
• Industry Number 318KDD

Manufacturer Details

• Manufacturer: Timken
• Condensed Mfg Number: 318KDD
• MPN: 318KDD

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Radial and Deep Groove Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
