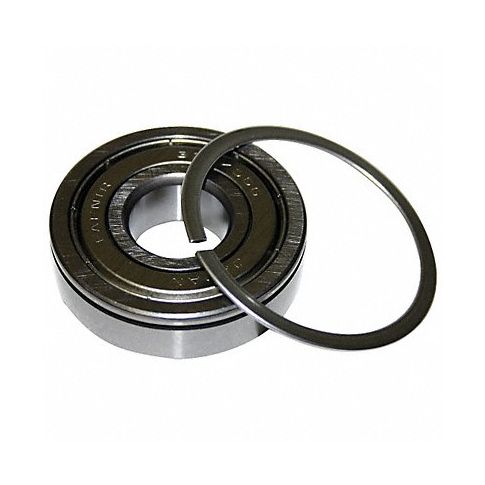

Radial Ball Brg 6309 45mm Bore Alloy Stl MPN:309KDGN
SKU
226-CXO-44Z976
Radial Ball Brg 6309 45mm Bore Alloy Stl
Introducing Radial Ball Bearing 6309 from Timken - an exceptional bearing component specifically designed for power transmission applications in various industries such as automotive, aerospace, and machinery. With its single row alignment, premium chrome steel alloy material, and open seal/shield type, this bearing ensures optimal performance, smooth operation, and minimal downtime. Engineered to withstand the harshest of conditions, the 6309 model is perfect for use in machines that require superior precision and reliability. Enhance your power transmission capabilities today with Radial Ball Bearing 6309 from Timken - the ultimate solution for durable and efficient performance!
Top product features:
- Premium Chrome Steel Alloy Material ensures high-quality performance and durability.
- Open Seal/Shield Type offers easy maintenance and reduced downtime for your machines.
- Single Row Alignment provides precise precision and reliability in power transmission applications.
Top product applications:
- Automotive industry for use in engine and transmission systems.
- Aerospace sector as part of landing gear components.
- Machinery manufacturing to be used in heavy duty motors and pumps.
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Single Shielded
- Bore Dia. 45 mm
- Bore Tolerance +0/-.012mm
- Outside Dia. 100 mm
- Outside Dia. Tolerance +0/-.015mm
- Width 25 mm
- Shield Material Steel
- Retainer Type Snap Ring
- ABEC Tolerance 1
- Dynamic Load Capacity 13,400 lb
- Static Load Capacity 7,100 lb
- Max. RPM 3,448 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Quaker Ferrocote
- Industry Number 309KDGN
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 309KDGN
- MPN: 309KDGN
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B01EK4K178
Product info last updated on October 13, 2023 5:39pm UTC Category: Bearings
