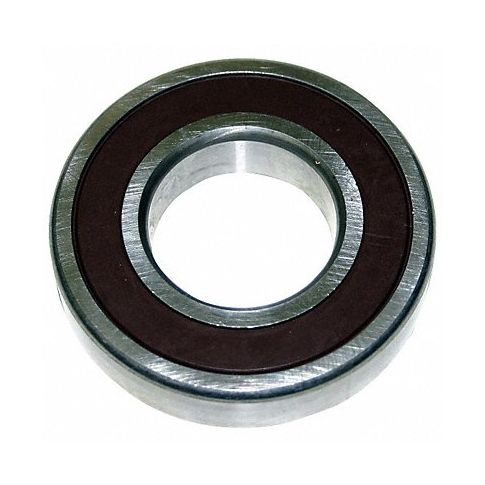

Radial Ball Brg 6303 17mm Bore Alloy Stl MPN:303PP
The Timken Radial Ball Bearing 6303 is a top-of-the-line bearing designed for high performance in various applications. Featuring single-row alignment, this bearing ensures precise power transmission while minimizing wear and tear. With its Double Sealed design, the bearing is protected from dust, dirt, and moisture, prolonging its lifespan even under demanding conditions. Its compact size and lightweight make it ideal for use in small to medium-sized machines where space and weight are critical considerations. The bearing's tolerances ensure optimal accuracy, consistency, and efficiency across a wide range of applications, from machinery to automobiles. Whether you're looking to improve the performance or extend the lifespan of your machinery, Timken Radial Ball Bearing 6303 is an excellent choice for precision, reliability, and cost-efficiency.
Top product features:
- Single-row alignment for precise power transmission
- Double Sealed design for prolonged lifespan
- Compact size and lightweight for use in space-constrained applications
Top product applications:
- Machine tool spindles for machining centers and lathes
- Pumps and compressors in industrial and energy sectors
- Agricultural and construction equipment such as tractors and excavators
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 17 mm
- Bore Tolerance +0/-.008mm
- Outside Dia. 47 mm
- Outside Dia. Tolerance +0/-.011mm
- Width 14 mm
- Seal Material Rubber
- ABEC Tolerance 1
- Dynamic Load Capacity 3,450 lb
- Static Load Capacity 1,460 lb
- Max. RPM 7,813 RPM
- Temp. Range -60 Degrees to 200 Degrees F
- Bearing Material Steel
- Cage Material Steel
- Lubrication Chevron SRI 2
- Industry Number 303PP
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: 303PP
- MPN: 303PP
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:39pm UTC Category: Bearings
