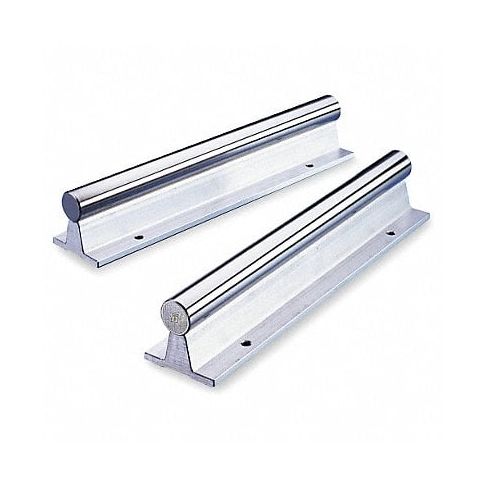

Support Rail Steel 0.500 In D 24 In MPN:SRA824

These shafts are mounted on support rails for speedy, bolt-down installation. The standard assemblies are feature an aluminum base and steel shaft, with a flange-mount design. The aluminum base helps reduce weight and resist vibration. The steel shaft helps promote durability and long service life in industrial environments.

Technical Specifications

• Item Linear Shaft Support Rail Assy
• Shaft Dia. 1/2 in
• Mounting Surface to Shaft Center (In.) 1.125 in
• Mounting Hole from Shaft End 2 in
• Mounting Hole Center to Center 4
• Mounting Holes 0.17 in
• Mounting Hole Size 0.169
• Bolt Size #6
• Length 24 in
• Base Width (In.) 1.5 in
• Base Height (In.) 0.188 in
• Material Aluminum Support Rail/Carbon Steel Shaft
• For Use With Thomson Linear Bearings
• Includes Support Rail and Shaft

Manufacturer Details

• Manufacturer: Thompson
• Condensed Mfg Number: SRA824
• MPN: SRA824

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Linear Shafting and Support Rails
• GDS Family Name: Linear Motion
• GDS Segment Name: Power Transmission
• UNSPSC: 30103101
• UNSPSC Class ID: 31
• UNSPSC Commodity Name: Rails
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Steel rail
• UNSPSC Family ID: 10
• UNSPSC Family Name: Structural materials and basic shapes
• UNSPSC Segment ID: 30
• UNSPSC Segment Name: Structures and Building and Construction and Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
