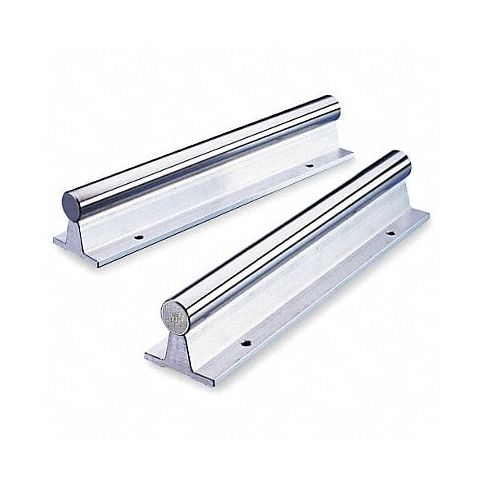

Support Rail Steel 1.000 In D 24 In MPN:SRA1624
Introducing our Linear Shaft Support Rail Assy - the perfect solution for your industrial applications! Made from high-quality steel and aluminum materials, this shaft is designed to provide durability and long service life in even the toughest environments. With a support rail design that speeds up installation time, this product features an impressive 1 inch shaft diameter and a mounting surface of 1.75 inches from the center, allowing for optimal precision and accuracy. Additionally, its 3-inch mounting hole from the shaft end provides secure installation, ensuring that your machinery is always stable and reliable. Whether you're working in power transmission or other heavy-duty industries, our Linear Shaft Support Rail Assy is a versatile and dependable addition to your equipment arsenal. Upgrade your operation with this top-performing product today!
Top product features:
- Steel shaft for durability and long service life
- Aluminum base to reduce weight and resist vibration
- Support rail design for speedy, bolt-down installation
Top product applications:
- Linear motion control system for industrial machines
- Bearing support in robotics and automation systems
- Mounting brackets and shafts for conveyors and elevators
Technical Specifications
- Item Linear Shaft Support Rail Assy
- Shaft Dia. 1 in
- Mounting Surface to Shaft Center (In.) 1.75 in
- Mounting Hole from Shaft End 3 in
- Mounting Hole Center to Center 6
- Mounting Holes 0.28 in
- Mounting Hole Size 0.281
- Bolt Size 1/4 in
- Length 24 in
- Base Width (In.) 2.125 in
- Base Height (In.) 0.25 in
- Material Aluminum Support Rail/Carbon Steel Shaft
- For Use With Thomson Linear Bearings
- Includes Support Rail and Shaft
Manufacturer Details
- Manufacturer: Thompson
- Condensed Mfg Number: SRA1624
- MPN: SRA1624
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483105000
- GDS Category Name: Linear Shafting and Support Rails
- GDS Family Name: Linear Motion
- GDS Segment Name: Power Transmission
- UNSPSC: 30103101
- UNSPSC Class ID: 31
- UNSPSC Commodity Name: Rails
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Steel rail
- UNSPSC Family ID: 10
- UNSPSC Family Name: Structural materials and basic shapes
- UNSPSC Segment ID: 30
- UNSPSC Segment Name: Structures and Building and Construction and Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
