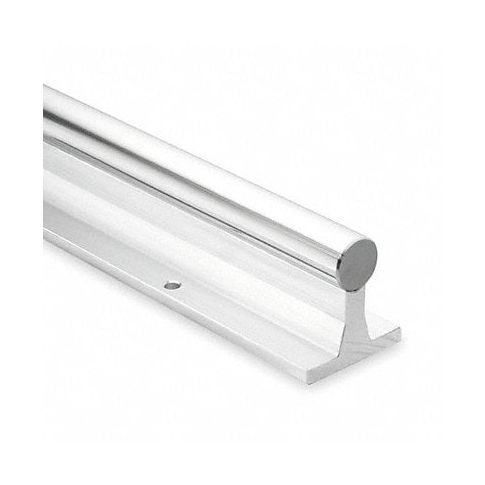

Rail Assy Alum Steel 1.500 In D 24 In MPN:SRA24L24

These linear shaft support rail assemblies are mounted on support rails for speedy, bolt-down installation. Each features an aluminum base and steel shaft for long service life and durability. The flange-mount design helps to reduce vibration. Use with Thomson open-style linear bearings (available separately).

Technical Specifications

• Item Linear Shaft Support Rail Assy
• Type 60 Case (TM)shafts
• Shaft Dia. 1 1/2 in
• Mounting Surface to Shaft Center (In.) 2.5 in
• Mounting Hole from Shaft End 4 in
• Mounting Hole Center to Center 8
• Mounting Hole Size 0.343
• Length 24 in
• Base Width (In.) 3 in
• Material Alum Base/Steel Shaft
• For Use With Thomson Open Style Linear Bearings

Manufacturer Details

• Manufacturer: Thompson
• Condensed Mfg Number: SRA24L24
• MPN: SRA24L24

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Linear Shafting and Support Rails
• GDS Family Name: Linear Motion
• GDS Segment Name: Power Transmission
• UNSPSC: 23153030
• UNSPSC Class ID: 30
• UNSPSC Commodity Name: Holding and positioning and guiding systems and devices
• UNSPSC Commodity ID: 30
• UNSPSC Commodity Name: Linear motion guides
• UNSPSC Family ID: 15
• UNSPSC Family Name: Industrial process machinery and equipment and supplies
• UNSPSC Segment ID: 23
• UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
